Delete Particular Facets
00000000-4a64-4bad-8bfa-d333bb2f44b0

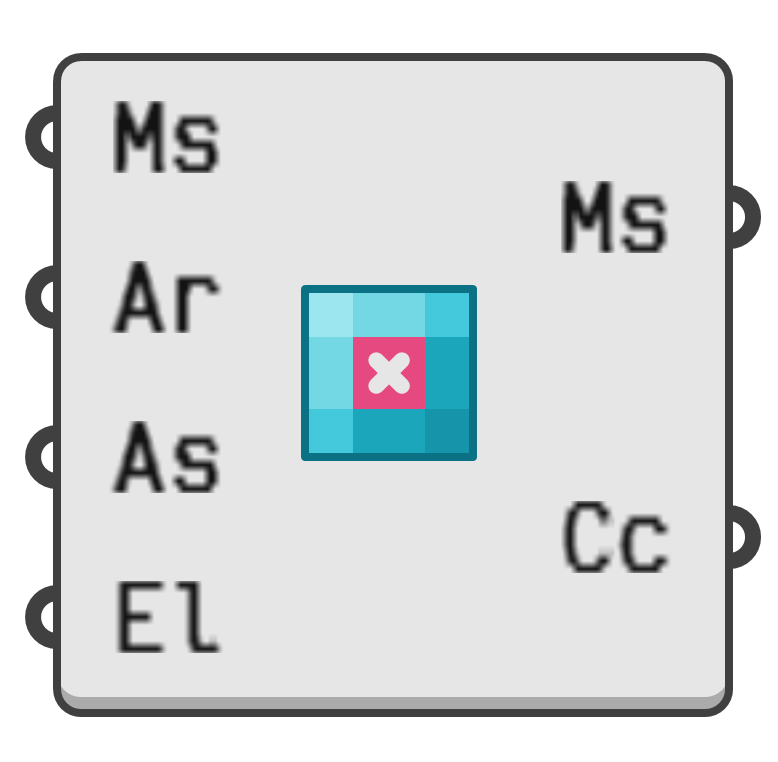

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Delete all mesh facets whose properties exceed various threshold values.

Input parameters:

  1. Ms → Mesh whose facets to delete.
  2. Ar → Optional area limit. Facets with areas smaller than this will be deleted.
  3. As → Optional aspect ratio limit. Facets with aspect ratios less than this will be deleted.
  4. El → Optional edge length limit. Facets whose shortest edge is smaller than this value will be deleted.

Output parameters:

  1. Ms → Mesh with deleted facets
  2. Cc → Number of deleted facets
