SubD From Box
00000000-489e-4e46-af55-442dbdd5974a

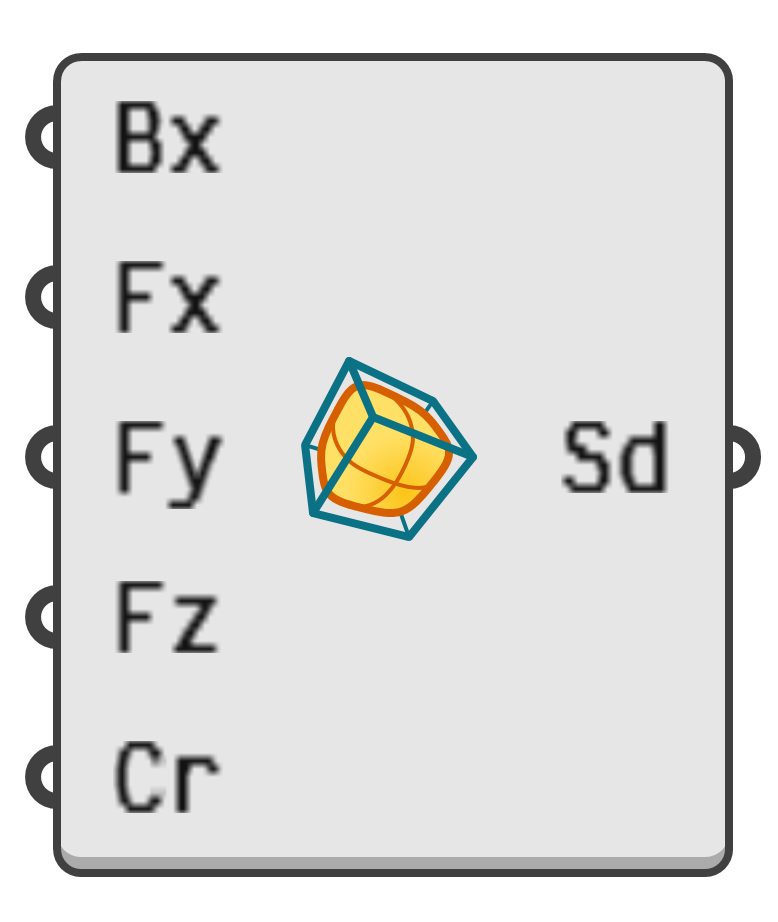

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a SubD surface from a box.

Input parameters:

  1. Bx → Box for SubD control net.
  2. Fx → Number of faces in the box X direction.
  3. Fy → Number of faces in the box Y direction.
  4. Fz → Number of faces in the box Z direction.
  5. Cr → When true, the box edges become sharp creases in the subdivision surface.

Output parameters:

  1. Sd → Subdivision surface based on the input box.
