Clipping Field
00000000-4077-4b1d-aaf4-a7fbe6ba3e95

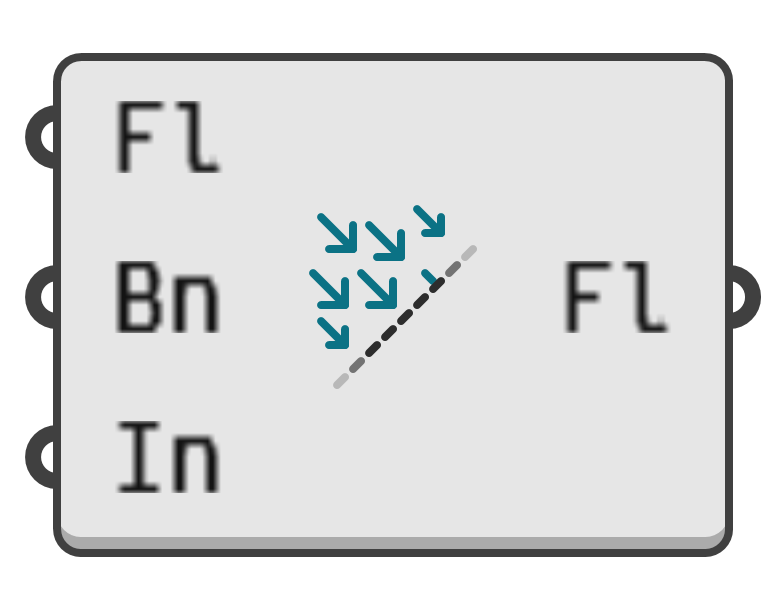

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Limit a field to a spatial region.

Input parameters:

  1. Fl → Field to clip.
  2. Bn → Spatial boundary. Can be either a closed surface or an infinite plane.
  3. In → If true, the 'inside/outside' behaviour of the boundary is inverted.
    •  True → Invert
    • False → Regular

Output parameters:

  1. Fl → Field clipped to new boundary.
