Evaluate Box
00000000-3f7b-426e-99db-a76813872b82

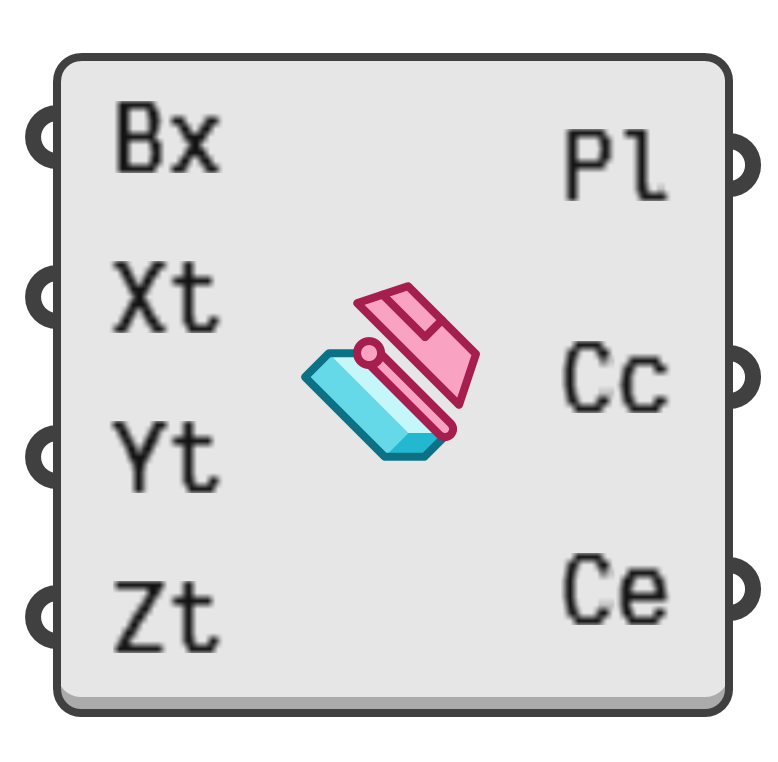

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute a set of box properties at normalised (x,y,z) parameters. To wit, the local plane, the nearest corner and the nearest edge.

Input parameters:

  1. Bx → Box to evaluate.
  2. Xt → Normalised parameter in the box X direction.
  3. Yt → Normalised parameter in the box Y direction.
  4. Zt → Normalised parameter in the box Z direction.

Output parameters:

  1. Pl → Plane aligned with box orientation at the given parameters.
  2. Cc → Box corner closest to the point at the given parameters.
  3. Ce → Box edge closest to the point at the given parameters.
