Triangle Pattern
00000000-3e25-4ca9-b8c0-518a4a155a86

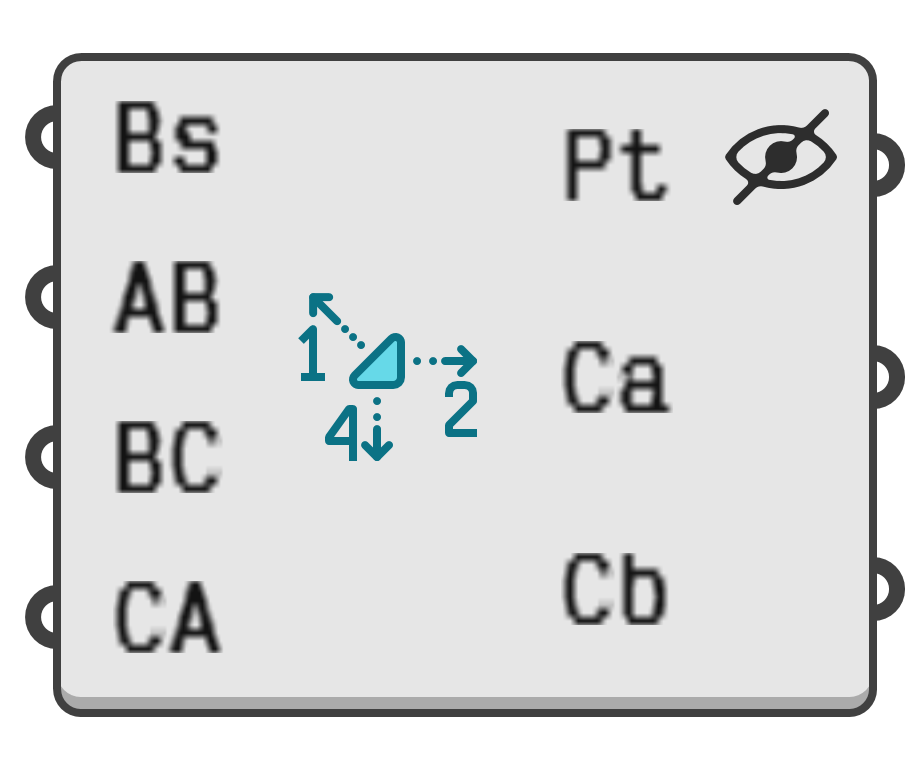

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Generate a two-dimensional grid by repeating a triangular cell.

Input parameters:

  1. Bs → Triangular base cell.
  2. AB → Number of repeats departing from the AB edge.
  3. BC → Number of repeats departing from the BC edge.
  4. CA → Number of repeats departing from the CA edge.

Output parameters:

  1. Pt → Points on the grid.
  2. Ca → Repeating grid cells.
  3. Cb → Inverted triangle cells.
