Above Plane
00000000-3a74-44da-aa66-f2c7e1c14672

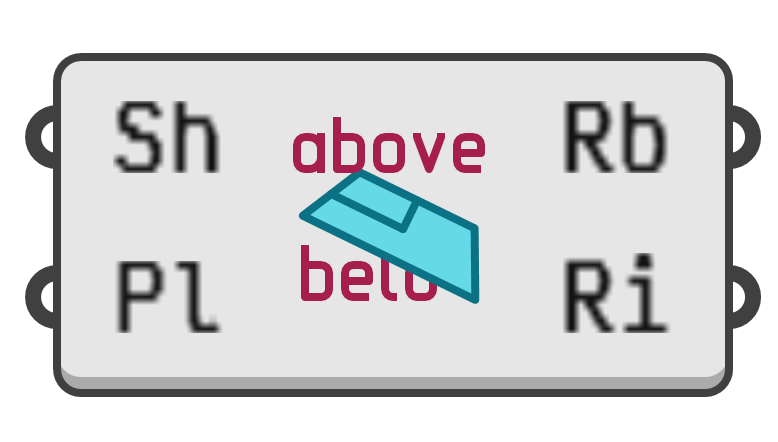

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Test whether a shape is above or below a plane.

Input parameters:

  1. Sh → Shape for plane relation test.
  2. Pl → Reference plane.

Output parameters:

  1. Rb → Boolean relation between shape and plane: true = above or coincident false = below
  2. Ri → Integer relation between shape and plane: 1 = above 0 = coincident -1 = below
