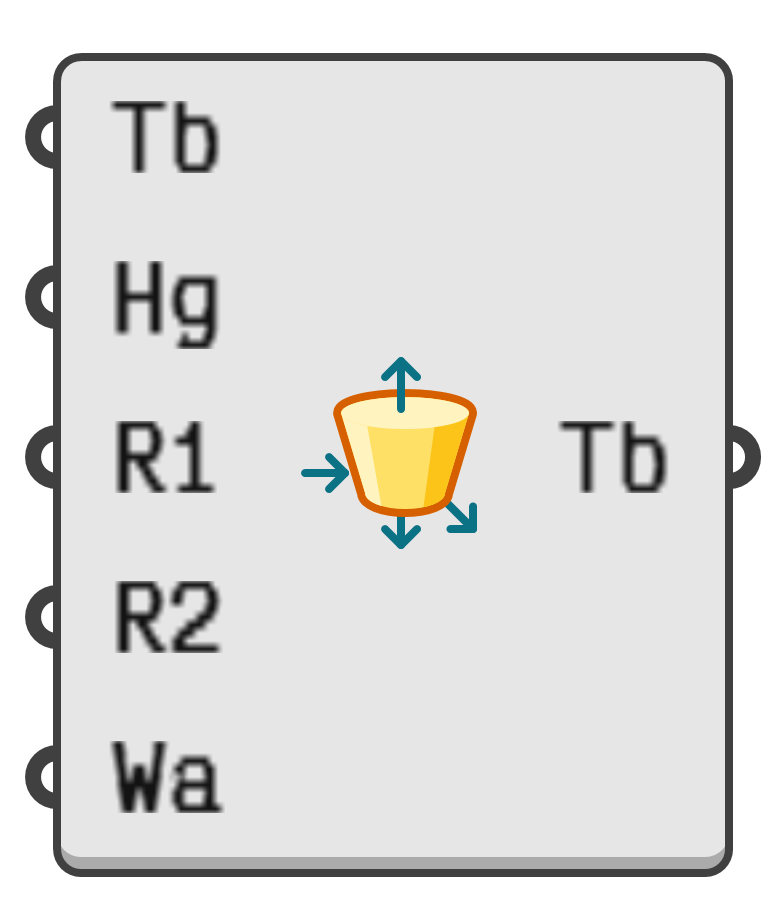

Modify Tube
00000000-36ae-44dc-a8b9-2cfdad6a6017
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.
Modify various properties of a tube shape.
- Tb → Tube to modify.
- Hg → New height. Omit this value to retain the original height.
- R1 → New radius at base plane. Omit this value to retain the original radius.
- R2 → New radius at height. Omit this value to retain the original radius.
- Wa → New wall thickness. Omit this value to retain the original wall thickness.
- Tb → Tube with modified properties.
