Offset Surface
00000000-3622-4737-803b-8ab1c4144539

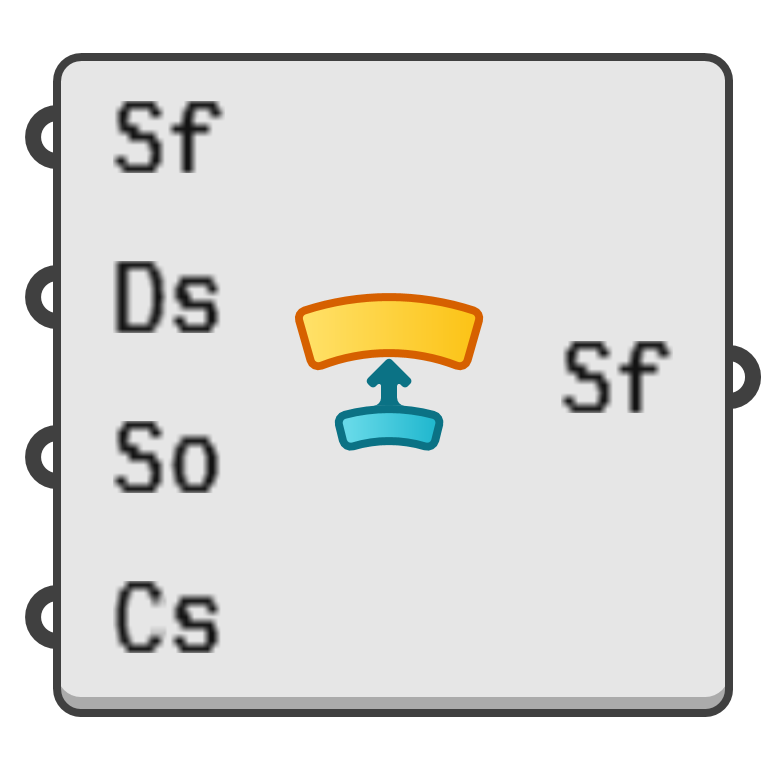

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Offset a surface by a given distance.

Input parameters:

  1. Sf → Surface to offset.
  2. Ds → Signed offset distance. Positive moves along the surface normal.
  3. So → When true, the original and offset surfaces are connected to form a closed solid.
  4. Cs → Determines how non-tangent junctions between offset faces are resolved.
    • 0 → Per Face
    • 1 → Sharp
    • 2 → Chamfer
    • 3 → Fillet
    • 4 → Loose

Output parameters:

  1. Sf → The offset result.
