Field Trajectory
00000000-3125-44e1-be8a-5dbefdef24a1

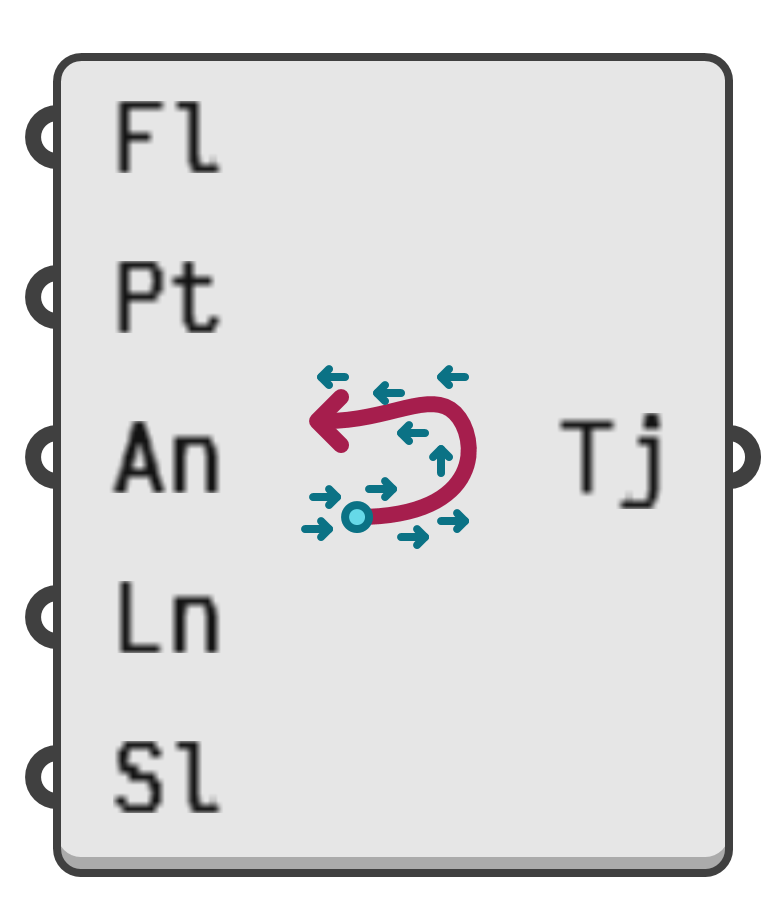

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Trace a trajectory through a vector field starting at a point.

Input parameters:

  1. Fl → Field to measure.
  2. Pt → Start of trajectory.
  3. An → Maximum allowed angle between adjacent trajectory segments.
  4. Ln → Maximum allowed length of trajectory.
  5. Sl → Differential solver to use while sampling the trajectory.
    • 0 → Euler
    • 1 → Runge-Kutta 2
    • 2 → Runge-Kutta 3
    • 3 → Runge-Kutta 4

Output parameters:

  1. Tj → Trajectory curve.
