ComponentAuto-generatedIntersect
Curve-Surface
00000000-2f2e-46e1-af6e-6d791994b596

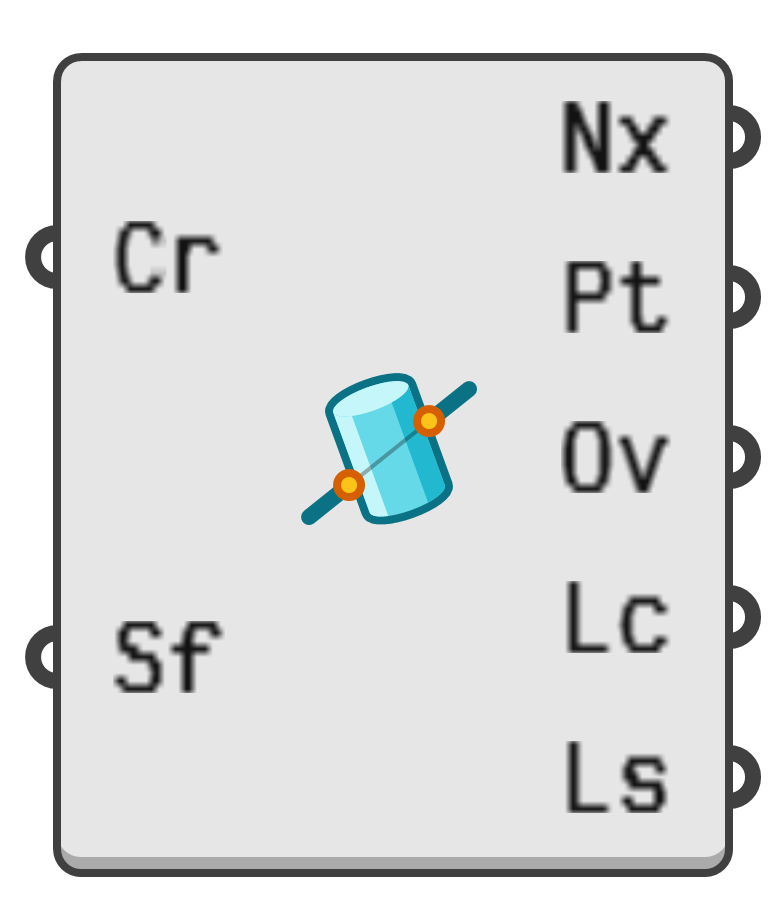

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find the intersection points and overlaps between a curve and a surface.

Input parameters:

  1. Cr → Curve for intersection.
  2. Sf → Surface for intersection.

Output parameters:

  1. Nx → Number of intersections found.
  2. Pt → All intersection points.
  3. Ov → All overlap curves.
  4. Lc → Loci of all intersections on the curve.
  5. Ls → Loci of all intersections on the surface.
