Align Planes
00000000-2afe-465f-8a4b-0941212a6c37

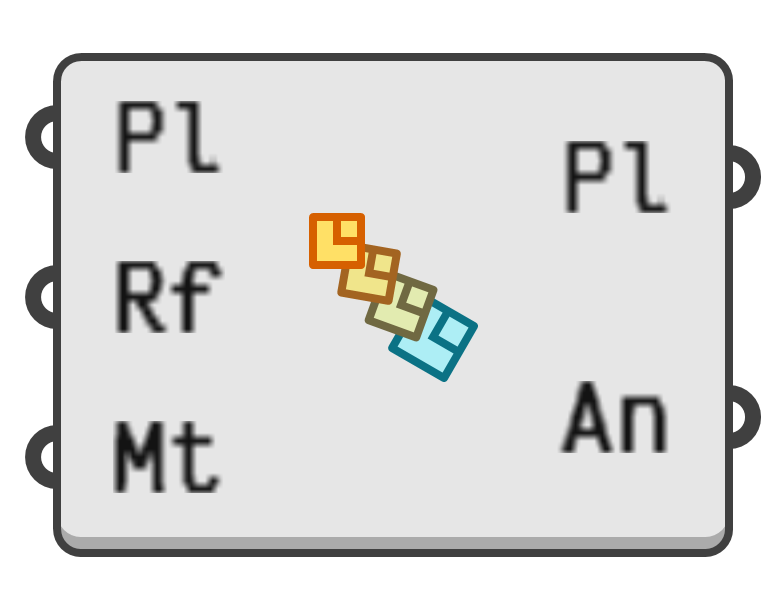

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Align a sequence of planes.

Input parameters:

  1. Pl → Planes to align.
  2. Rf → Optional reference plane. If omitted, the first valid plane in the sequence is used.
  3. Mt → Alignment method.
    • 0 → Serial Propagation
    • 1 → Single Reference

Output parameters:

  1. Pl → Aligned planes.
  2. An → Applied rotation angles.
