grasshopper2 Rhinorhino3d.com
ComponentAuto-generatedDisplay
View Property
00000000-2a4e-48d9-b3be-c4a368e80d37

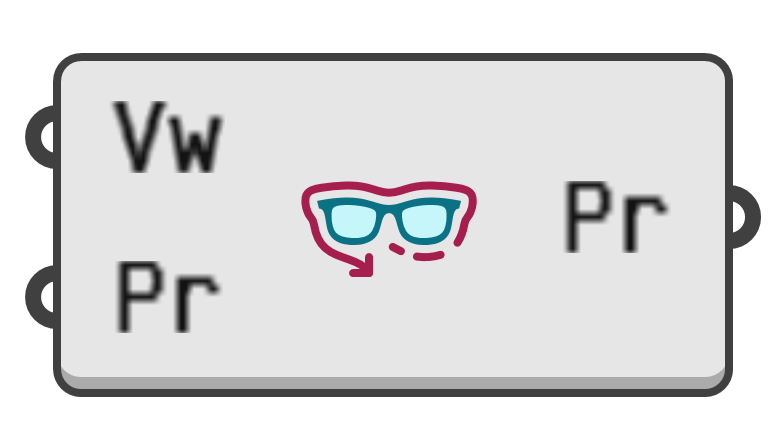

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute a given property of a view.

Input parameters:

  1. Vw → View to zoom.
  2. Pr → Property to measure.
    •  0 → Projection
    •  1 → Camera
    •  2 → Target
    •  3 → Centre
    •  4 → Direction
    •  5 → Up
    •  6 → Lens length
    •  7 → Canonical Angle
    •  8 → Horizontal Angle
    •  9 → Vertical Angle
    • 10 → Aspect
    • 11 → Bottom Plane
    • 12 → Top Plane
    • 13 → Left Plane
    • 14 → Right Plane
    • 15 → Near Plane
    • 16 → Far Plane

Output parameters:

  1. Pr → Requested view property. The type will depend on the property.
