Box Edges
00000000-280e-4f8e-b9d0-74e39c494a51

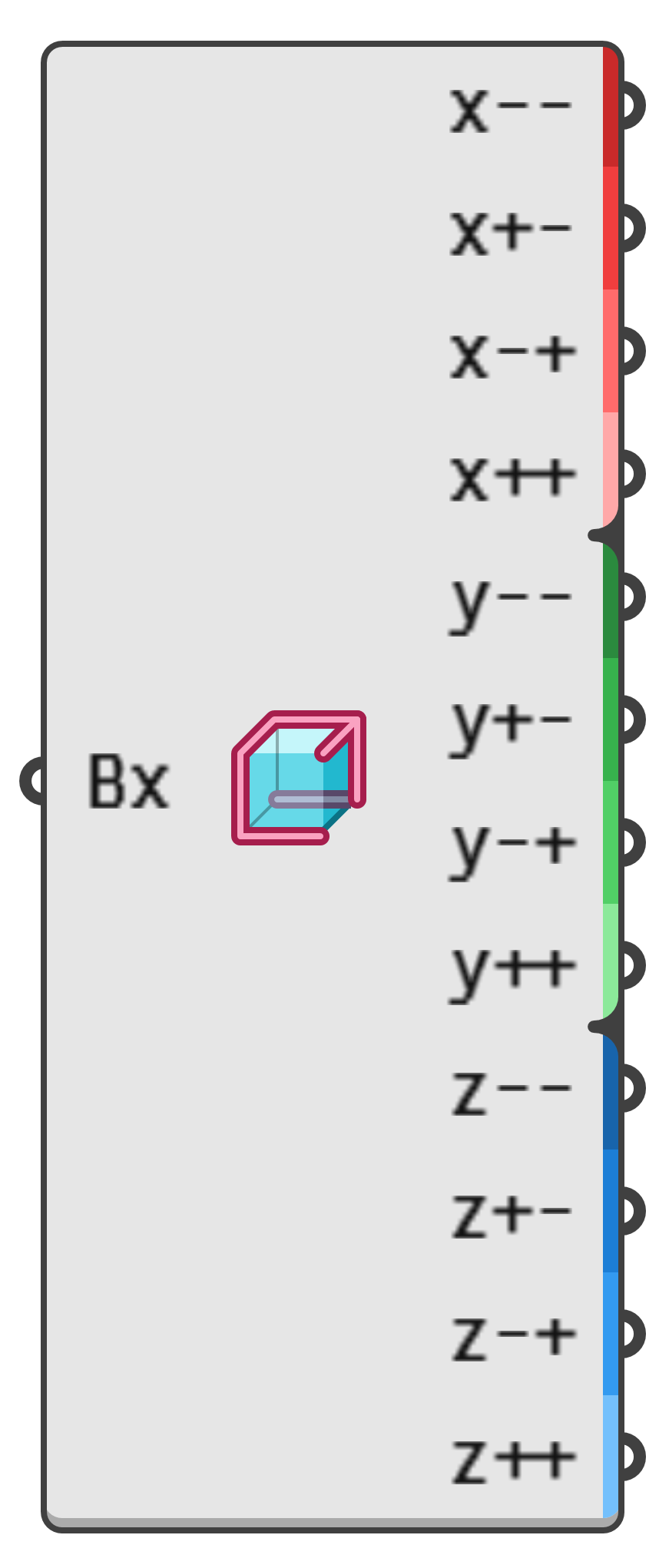

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract the twelve edges of a box.

Input parameters:

  1. Bx → Box for edge line extraction.

Output parameters:

  1. x-- → Edge in the X direction.
  2. x+- → Edge in the X direction.
  3. x-+ → Edge in the X direction.
  4. x++ → Edge in the X direction.
  5. y-- → Edge in the Y direction.
  6. y+- → Edge in the Y direction.
  7. y-+ → Edge in the Y direction.
  8. y++ → Edge in the Y direction.
  9. z-- → Edge in the Z direction.
  10. z+- → Edge in the Z direction.
  11. z-+ → Edge in the Z direction.
  12. z++ → Edge in the Z direction.
