Graph From 3D Hull
00000000-2389-4a2e-9c5c-dd11e8914966

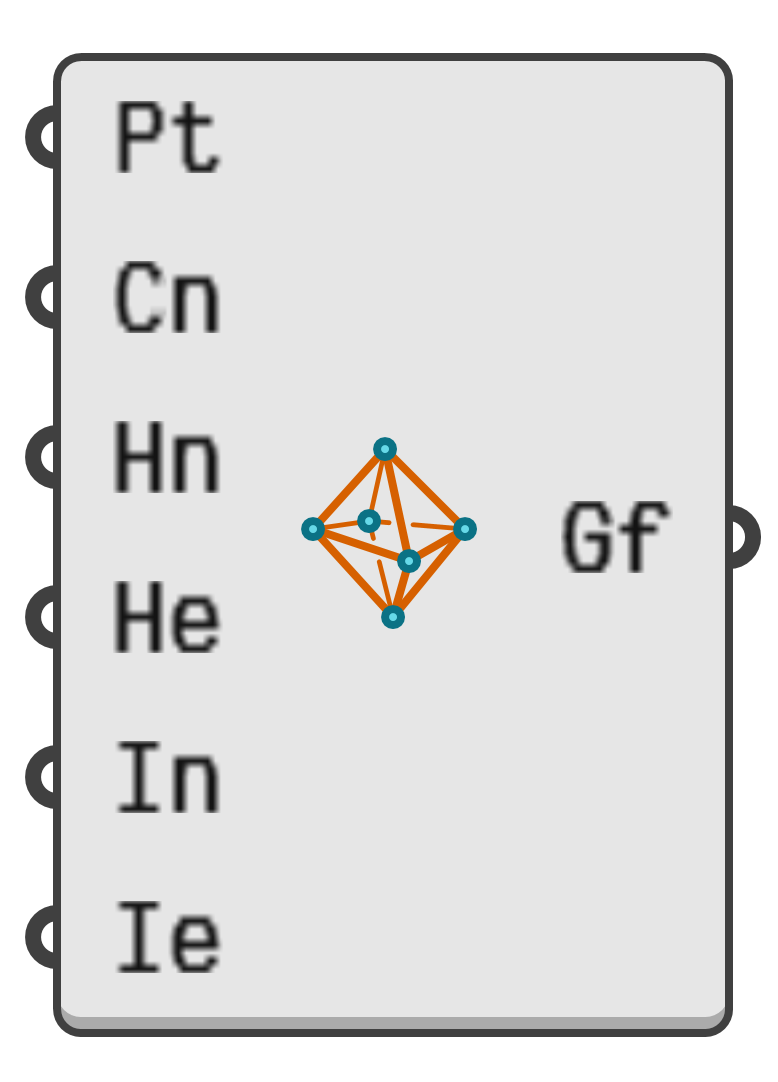

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a node-edge graph from the three-dimensional convex hull of a collection of points.

Input parameters:

  1. Pt → Points for graph.
  2. Cn → If true, points on the interior of the hull are connected as well.
  3. Hn → Optional meta data to assign to naked edges.
  4. He → Optional meta data to assign to unwelded edges.
  5. In → Optional meta data to assign to interior smooth edges.
  6. Ie → Optional meta data to assign to interior smooth edges.

Output parameters:

  1. Gf → Node-edge graph from convex hull.
