Dissect Arc
00000000-2329-41a3-8814-7ef66d9eb7c6

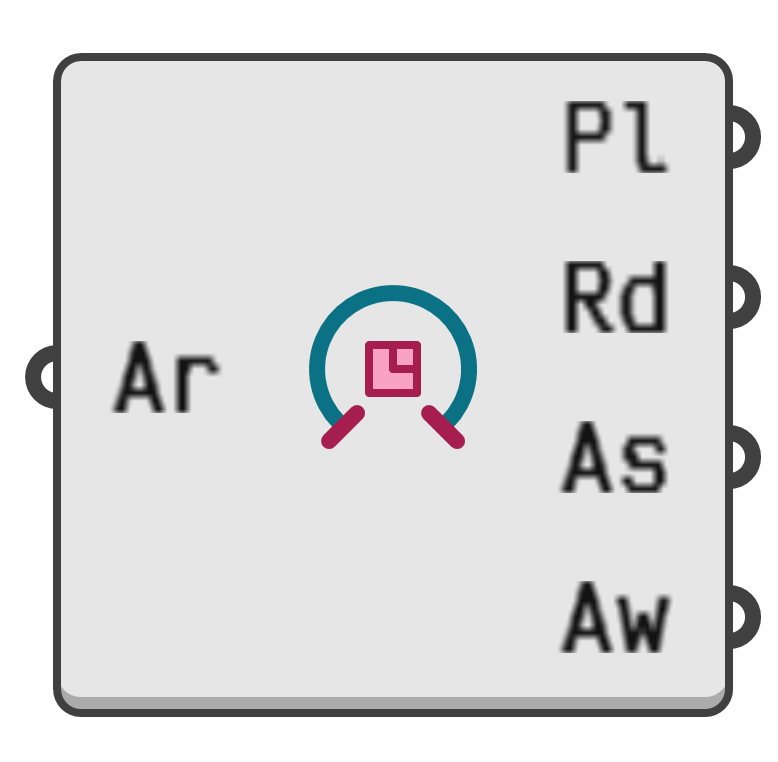

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Dissect an arc into its core properties.

Input parameters:

  1. Ar → Arc to dissect.

Output parameters:

  1. Pl → Base plane representing both the centre and the orientation of the arc.
  2. Rd → Radius of the arc.
  3. As → Angle of the start of the arc, as measured anti-clockwise from the arc plane x-axis.
  4. Aw → Angle of the interior of the arc, as measured anti-clockwise within the arc plane.
