Shrinkwrap
00000000-22ec-4571-a7ec-2e7ccd5a6364

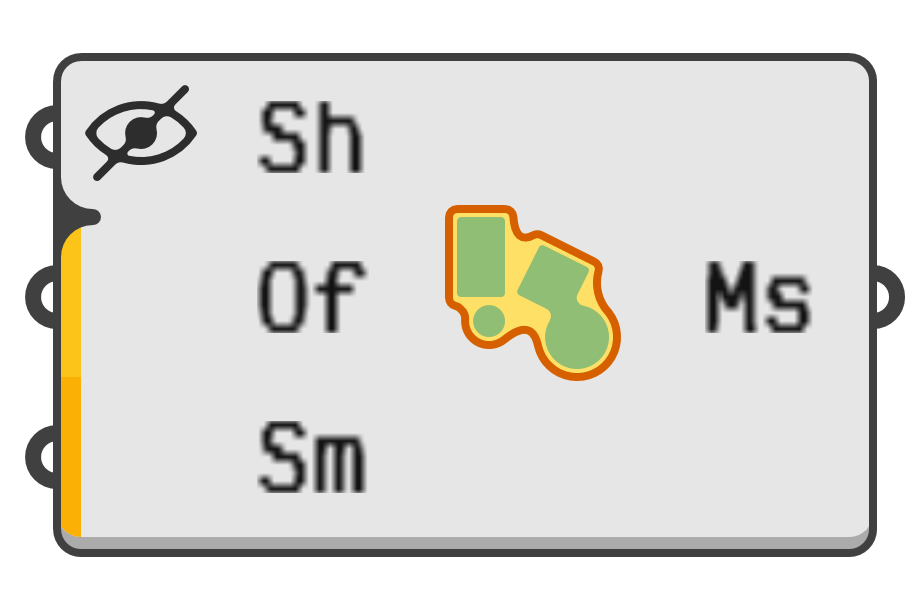

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Shrinkwrap geometry with a mesh.

Input parameters:

  1. Sh → Shapes to wrap.
  2. Of → Inwards or outwards offset distance of the wrap.
  3. Sm → Number of smoothing iterations to perform.
  4. Op → Polygon optimisation factor between 0 and 1. Lower values give better feature preservation at the cost of a higher facet count.
  5. Fh → If true, holes in the input are filled before wrapping.
  6. Ed → Optional target edge length for wrapping mesh. If omitted, a fraction of the bounding box is used.
  7. Md → Meshing density factor between 0 and 1 to use when meshing input surfaces.

Output parameters:

  1. Ms → Resulting ShrinkWrap mesh.
