Text On Curve
00000000-2145-4dfb-98dd-6b774693639a

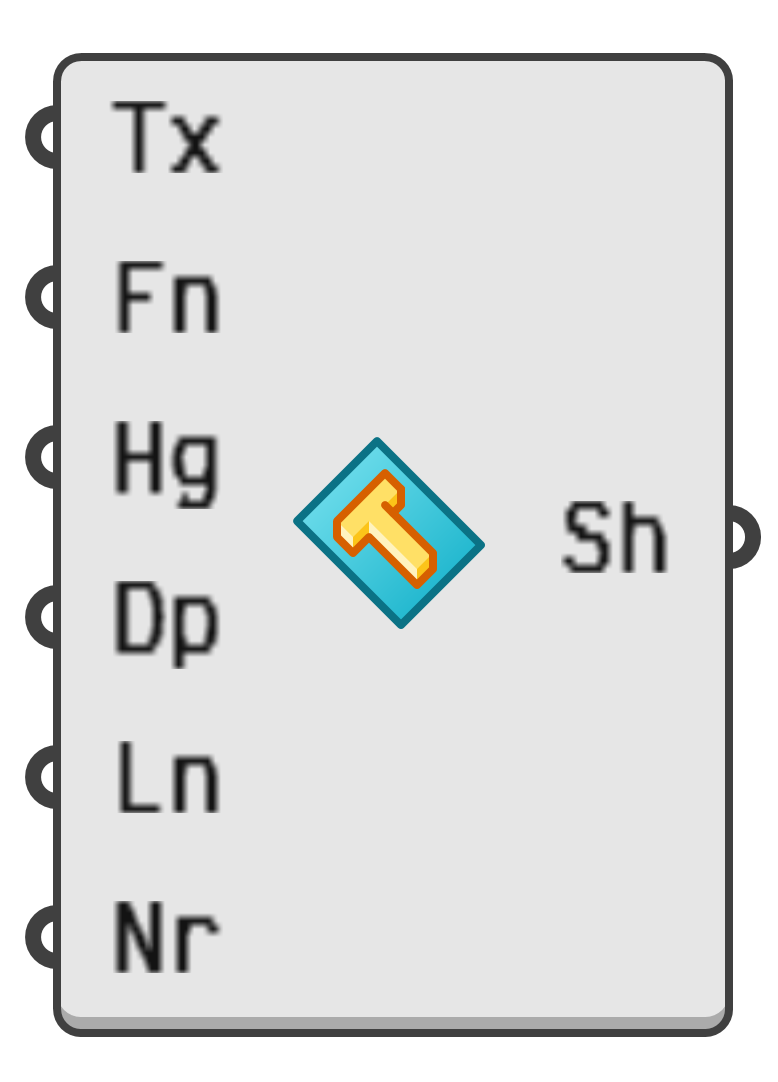

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create and align a collection of textual shapes onto a base curve and a normal field.

Input parameters:

  1. Tx → Text to create.
  2. Fn → Font name and optional properties.
  3. Hg → Height of text shapes.
  4. Dp → Depth of text shapes.
  5. Ln → Base line for text positioning.
  6. Nr → Orientation of normal direction.

Output parameters:

  1. Sh → Resulting text shapes.
