Staircase
00000000-17c4-481f-8f72-d7e4fb873506

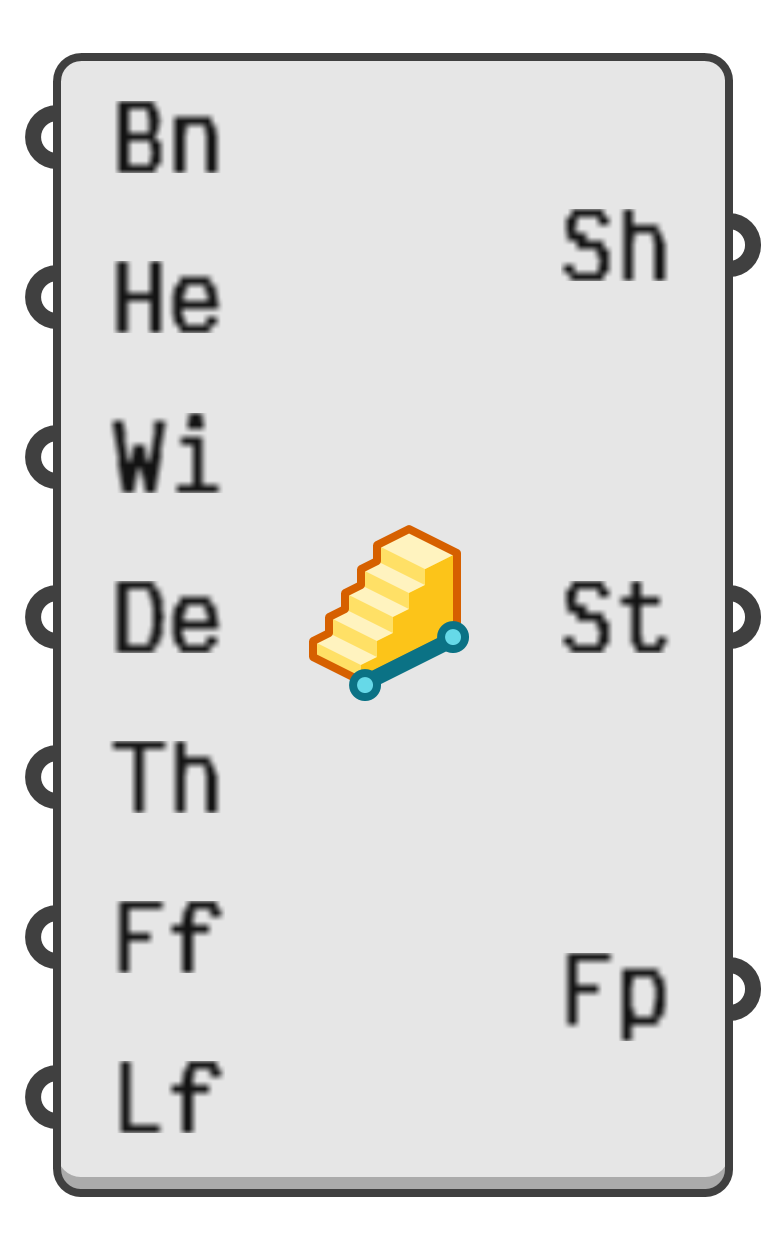

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a basic staircase along a boundary polyline.

Input parameters:

  1. Bn → Outside boundary of stairs.
  2. He → Height difference between first and last step.
  3. Wi → Width of staircase
  4. De → Depth hint of individual steps.
  5. Th → Thickness of shape underneath steps.
  6. Ff → Stair flight filling method.
    • 0 → Exact
    • 1 → Approximate
  7. Lf → Stair landing filling method.
    • 0 → One Step
    • 1 → Two Steps
    • 2 → Many Steps

Output parameters:

  1. Sh → Staircase surface.
  2. St → Steps on all flights and landings.
  3. Fp → Footprint of staircase on ground.
