Pipe Clipping Field
00000000-1501-4136-914e-41508ba5e8a3

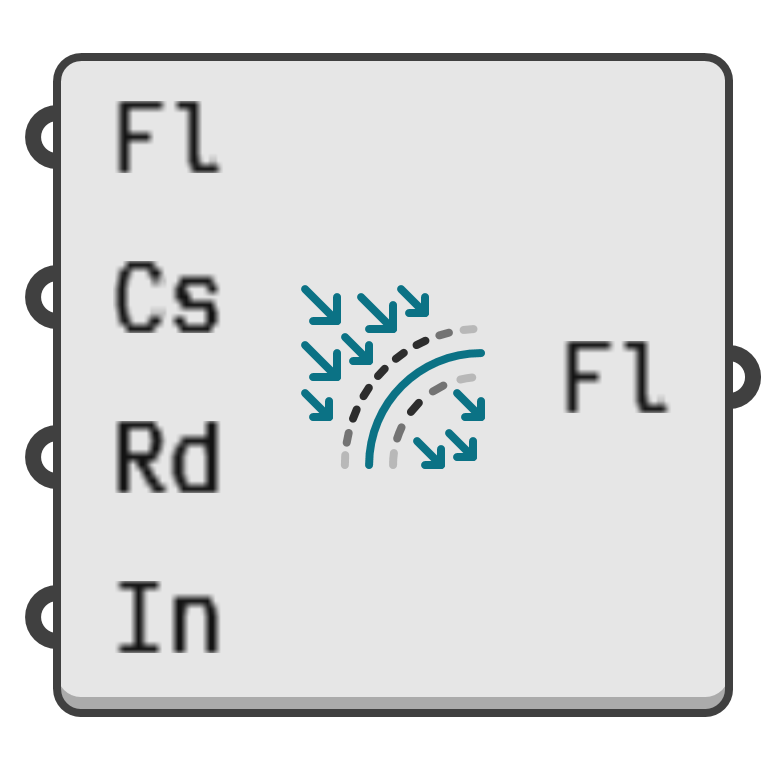

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Clip a field to the boundary implied by a collection of pipes.

Input parameters:

  1. Fl → Field to clip.
  2. Cs → Centre curves for pipes.
  3. Rd → Radius of pipes.
  4. In → If true, the field is clipped inside the pipe boundary.

Output parameters:

  1. Fl → Field clipped to new boundary.
