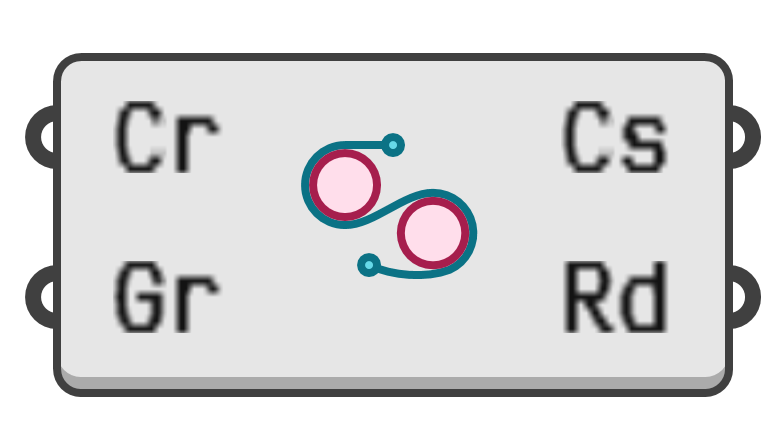

Osculating Graph
00000000-1342-4117-be09-9503296faa80
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.
Draw osculating circles at the maximum curvature points of a curve.
Input parameters:
- Cr → Curve to analyze.
- Gr → Optional gradient to be applied to the circles, based on their radii.
Output parameters:
- Cs → Osculating circles.
- Rd → Circle radii.
