FilletEdge

Fillet and Blend Edge

Soften sharp edges on solids or polysurfaces in one go. Create beautiful transitions for your high-end consumer products.

Improvements for FilletEdge | BlendEdge
New in V9

Smooth corners, precise design! FilletEdge ’s Setback corners deliver better performance for molding and provide an elegant visual flow.

Complex Transitions

FilletEdge and BlendEdge handle more corner cases. No pun intended! Many improvements to acute and concave corners, as well as better solutions for 4 and 6-sided corners, using the new multiblend technology.

Before After

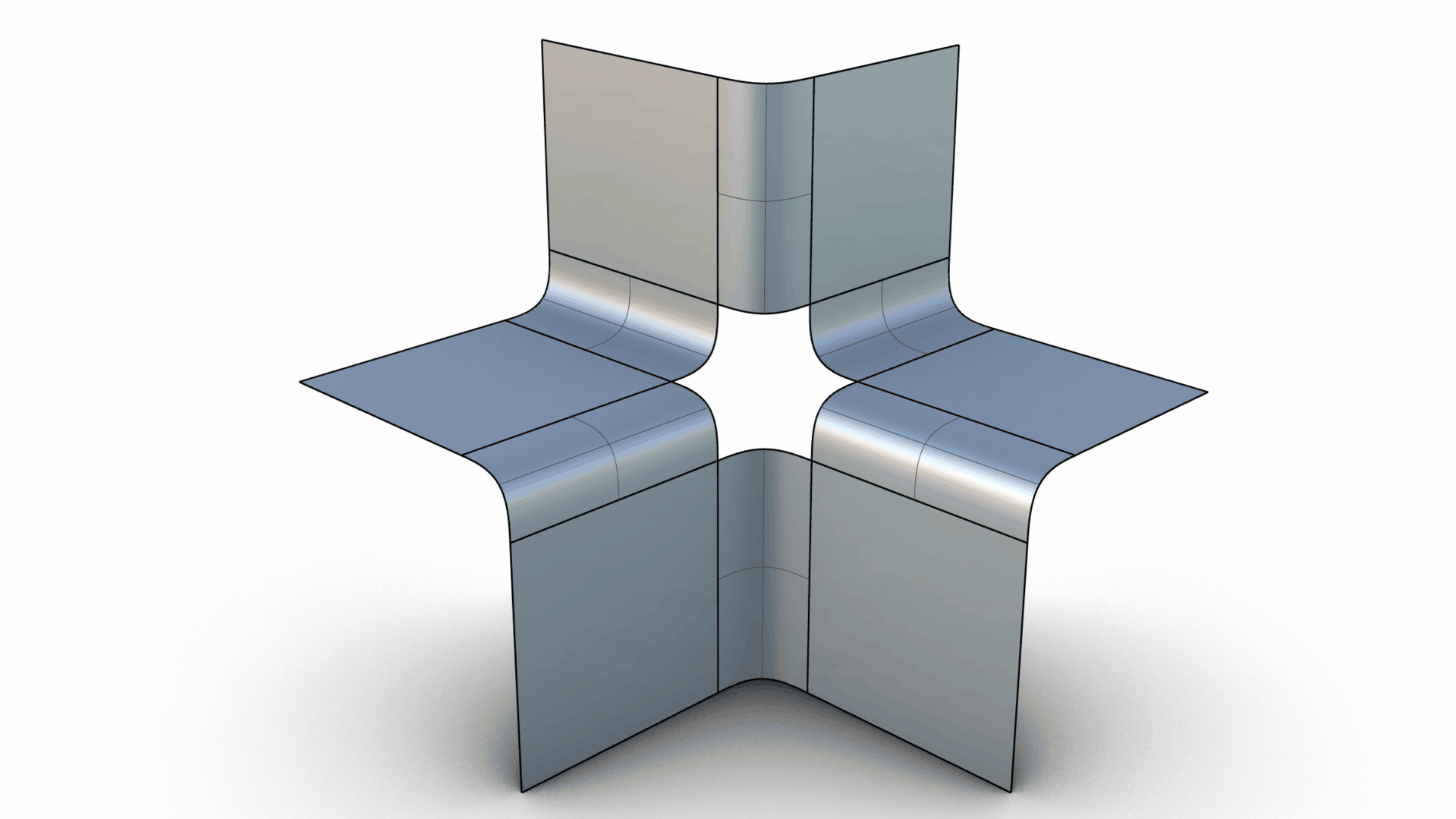

Before

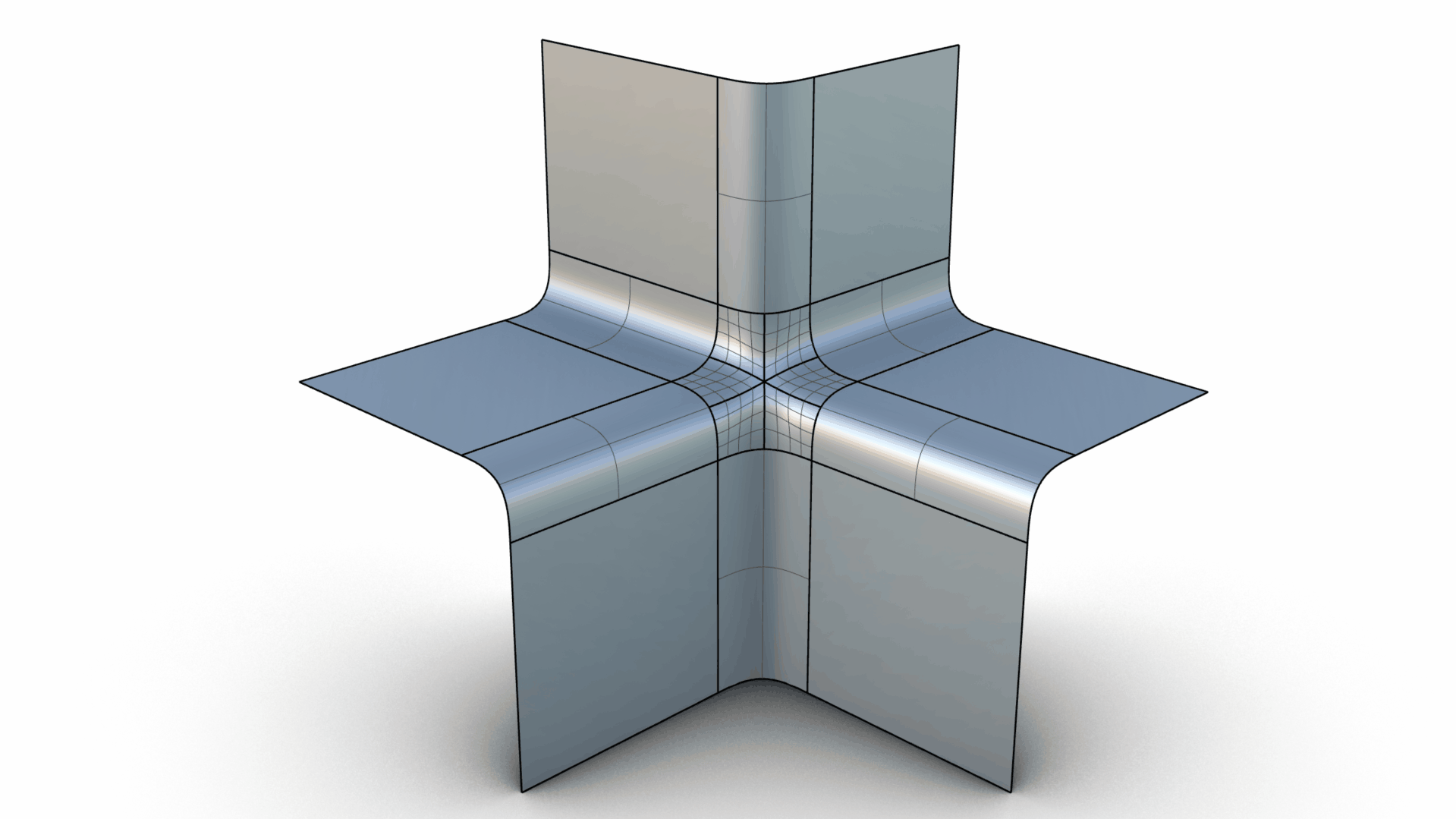

After

Results in Rhino 8

Results in Rhino 9

Try It

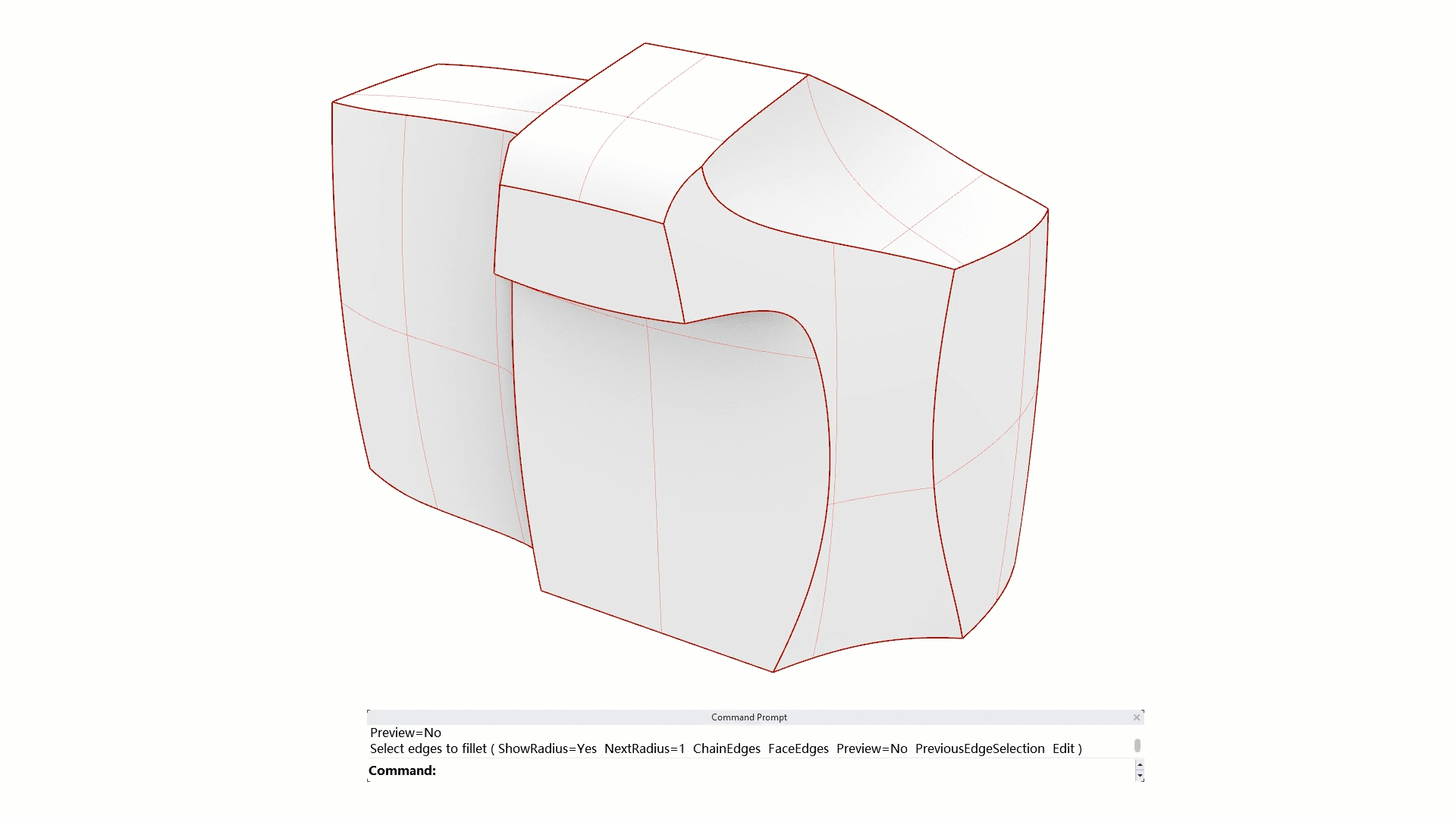

  1. Download Rhino 8 Evaluation for Windows or Mac.
  2. Download and open the FilletEdge_Setback.3dm model.
  3. Run the command FilletEdge and press Enter.
  4. In the Command prompt , select NextRadius.
  5. At the NextRadius prompt, type 4.
  6. Select Preview to set to Yes. You’ll notice a live preview of the fillets in the Viewport viewport.
  7. Window select the entire camera model. Notice that a triangular surface has been created for each corner.
  8. In the prompt , select the Setback option to set to Yes. Now, all the triangular surfaces have been replaced with 4-sided multiblend transitions.
  9. Press Enter to complete the command.
  10. Try it on your own! Experiment with your own models.
  11. Share comments and feedback on the Rhino Forum.
