Main Screen

Main menu Main menu

Tap the Main menu button to access the File, Layers, Settings, and Help panels.

Viewport title

Tap the viewport title to set the view orientation, change the display mode, adjust the viewport layout, or take a screenshot.

AR switch AR switch

This button switches the current viewport to AR mode for viewing the 3D model in real-world spaces using AR capabilities.

Markups

Tap the text of “Markups” to show the list of saved markups.

Tap the New Markup button New markup to show the markup toolbar and create a new markup. View manipulation is disabled while you are creating a markup.

Done Window selection mode

Enable the single-shot window selection mode and then draw a rectangle in the viewport to select objects.

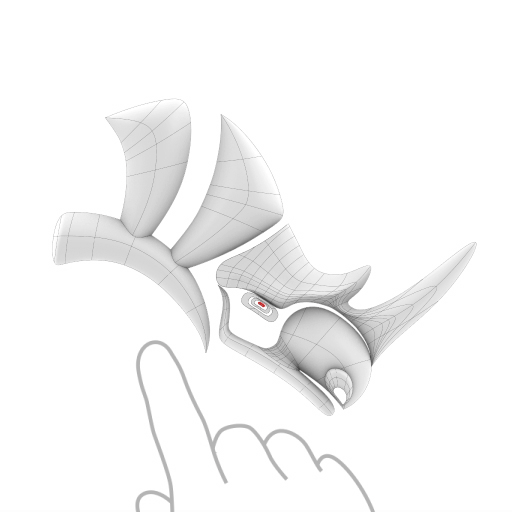

  • Window-selection
    Drag a rectangle from left to right. The selection rectangle has a solid outline. Only objects that are fully enclosed within the rectangle are selected.
Windows-selection

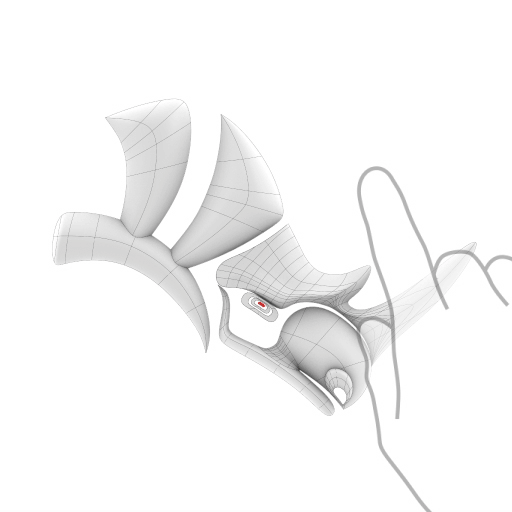

  • Cross-selection
    Drag a rectangle from right to left. The selection rectangle appears as a dashed outline. All objects that are either partially or fully inside the rectangle are selected.
Cross-selection

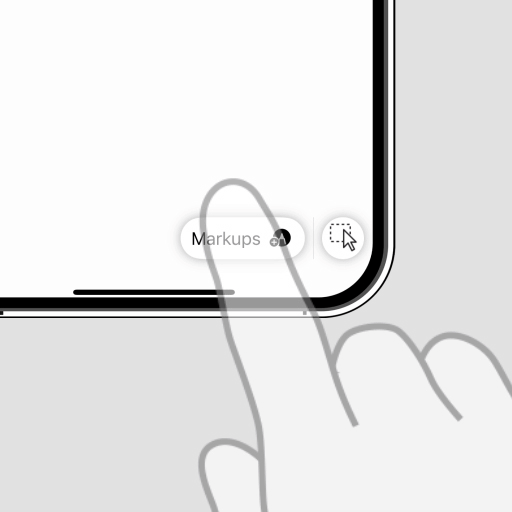

Contextual help

Press and hold a UI element to show a tooltip that explains what it does.

Context help
