Extract Dilation

583d63ab-1b99-4a31-b835-a54b4c803d17

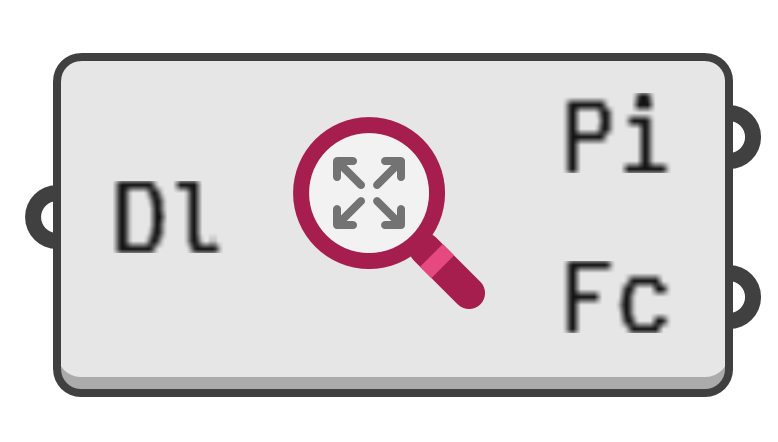

object preview

This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract the dilational aspect of a transformation.

Input parameters:

Dl → Transformation to operate on.

Output parameters:

Pi → Origin point of the embedded dilation.
Fc → Scaling factor of the embedded dilation.
