Classify Transform
00000000-f9f0-4e11-b44d-4f4b84591d13

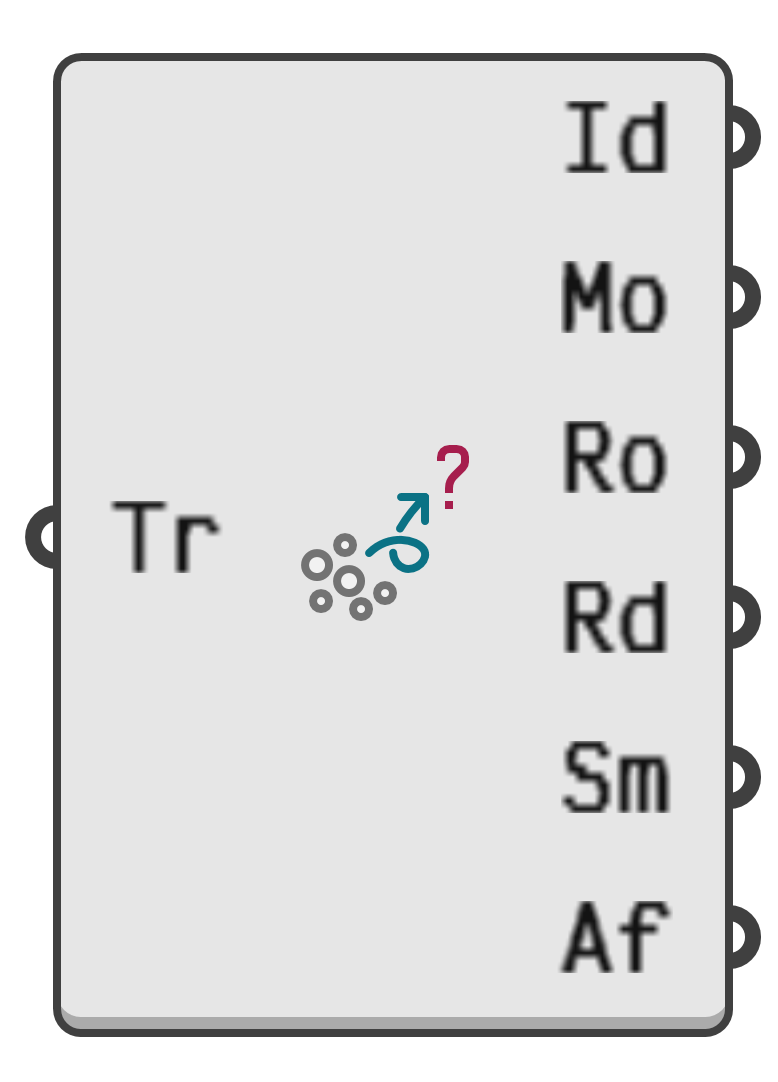

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Classify a transformation based on its mathematical category.

Input parameters:

  1. Tr → Transformation to classify.

Output parameters:

  1. Id → True if the transformation equals the identity matrix and does not affect shapes at all.
  2. Mo → True if the transformation contains only translations.
  3. Ro → True if the transformation contains only rotations.
  4. Rd → True if the transformation is made up of a combination of translations and rotations.
  5. Sm → True if the transformation is made up of a combination of translations, rotations, dilations and reflections.
  6. Af → True if the transformation is affine, meaning it lacks perspective or tapering aspects.
