Sweep From Rails
00000000-f7c2-4ec5-abf4-9363910318b6

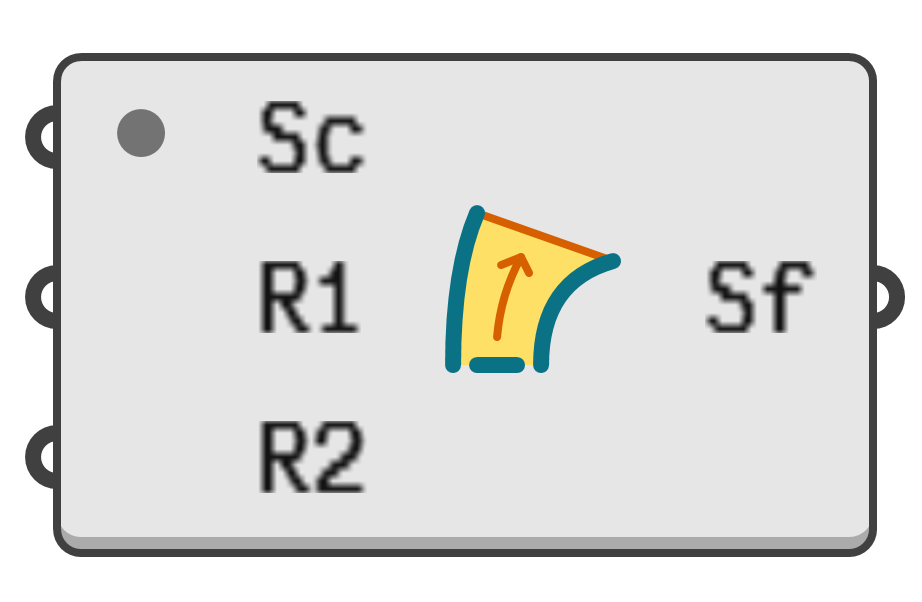

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a surface by sweeping a shape curve over two rail curves.

Input parameters:

  1. Sc → Sweep section curves.
  2. R1 → First sweep rail curve.
  3. R2 → Second sweep rail curve.
  4. Hg → If true, sweep segments retain the height of the section curves rather than scale along with the rail separation.
  5. Aj → If true, section curves are automatically sorted and modified just like the Rhino command does.
  6. Rb → Optional rebuild control point count. If omitted, the resulting surface will not be rebuild.
  7. Rf → Optional refit tolerance. If omitted, the resulting surface will not be refitted.

Output parameters:

  1. Sf → Sweep surface based on rails and section curves.
