Plane From Axes
00000000-f1a6-46d4-a196-520f0985cd4f

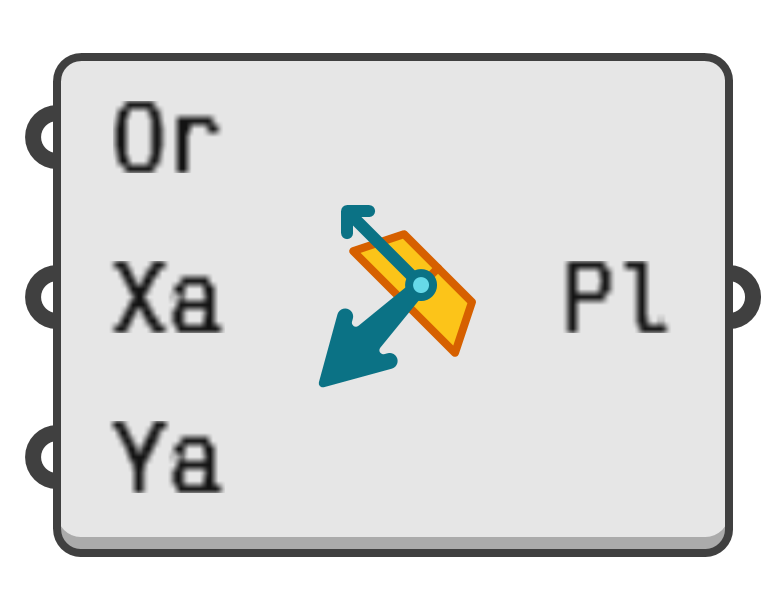

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a plane out of an origin point and (X,Y) axis directions.

Input parameters:

  1. Or → Plane origin point.
  2. Xa → Plane x-axis direction.
  3. Ya → Plane y-axis direction.

Output parameters:

  1. Pl → Plane with specified origin point and axis directions. Note that since the y-axis of a valid plane must be perpendicular to the x-axis, the plane y-axis may differ from the specified direction.
