Mesh Split Plane
00000000-f07d-4e9b-8262-6df41ec65630

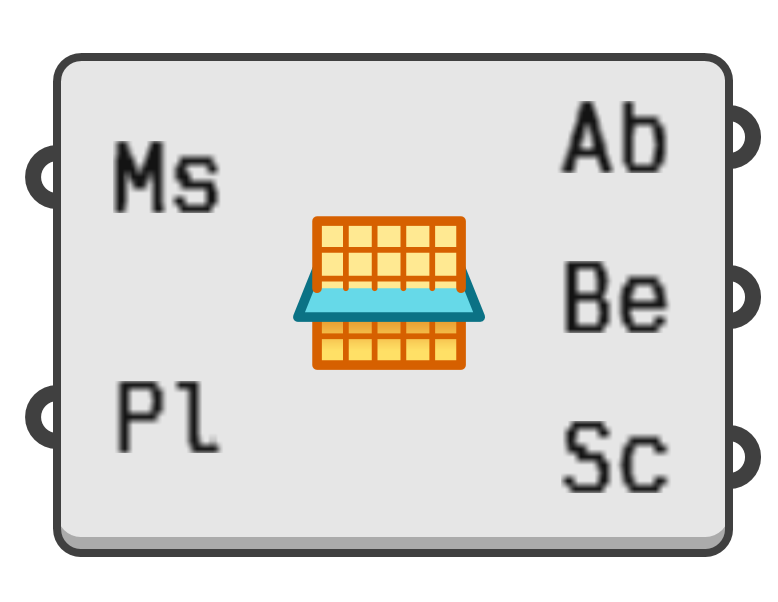

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Split a mesh with an infinite plane.

Input parameters:

  1. Ms → Mesh to split.
  2. Pl → Splitting plane.

Output parameters:

  1. Ab → Mesh fragments on the positive side of the plane.
  2. Be → Mesh fragments on the negative side of the plane.
  3. Sc → Cut polylines where the plane intersects the mesh.
