Arc Angles
00000000-f05c-48d3-9616-b18964949027

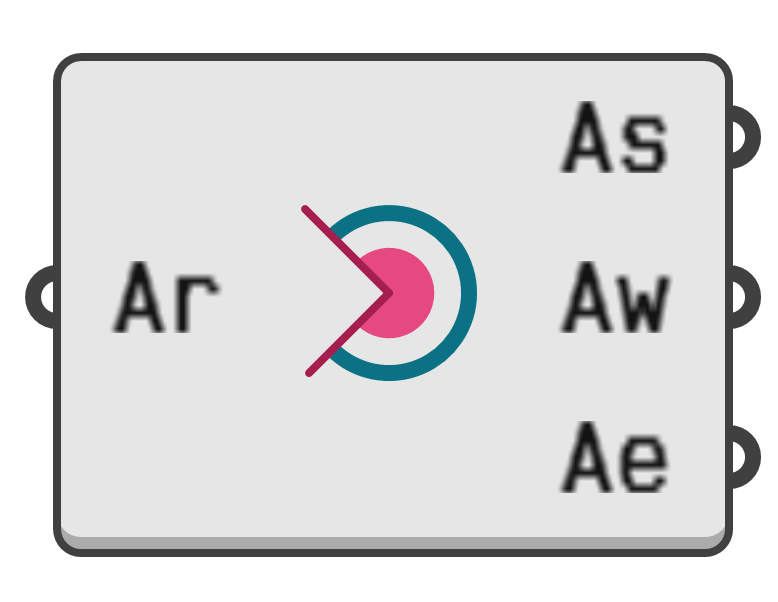

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find the start, sweep and end angles of an arc within its own plane.

Input parameters:

  1. Ar → Arc to dissect.

Output parameters:

  1. As → Angle of the start of the arc, as measured anti-clockwise from the arc plane x-axis.
  2. Aw → Angle of the interior of the arc, as measured anti-clockwise within the arc plane.
  3. Ae → Angle of the end of the arc.
