Curvature Circles
00000000-ec9f-4e28-96d3-222c57c344cc

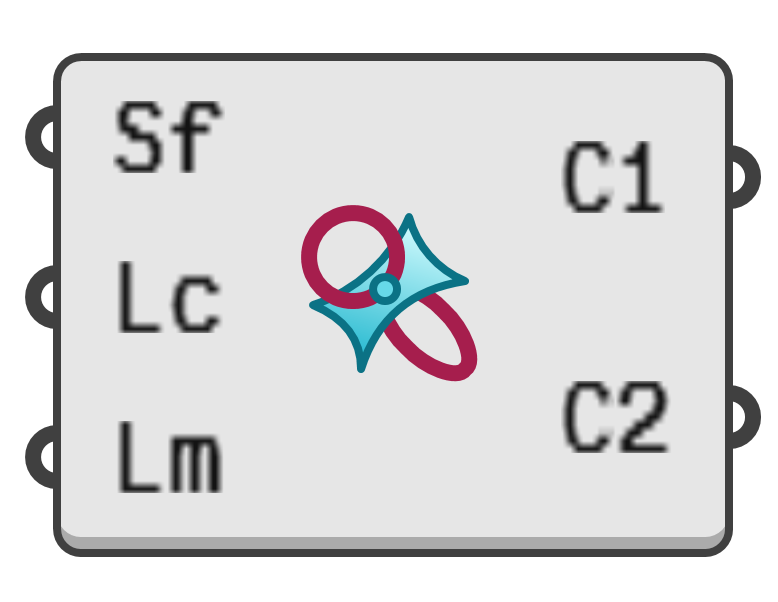

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute finite fragments of the osculating circles at a surface locus.

Input parameters:

  1. Sf → Surface to evaluate.
  2. Lc → Evaluation locus.
  3. Lm → Length limit osculating circle approximation.

Output parameters:

  1. C1 → Fragment of first osculating circle.
  2. C2 → Fragment of second osculating circle.
