Plane From Reflection
00000000-eb94-4c0c-bfce-524a377cc35d

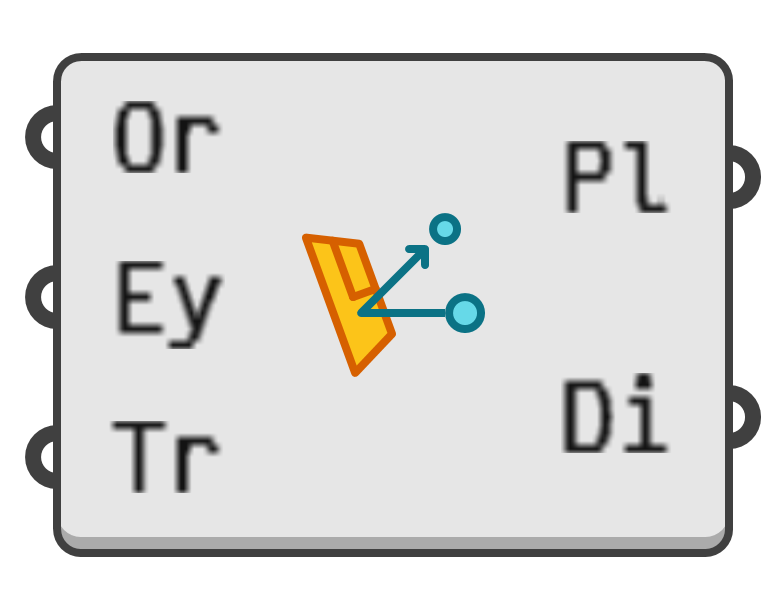

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a mirror plane for an eye and a target location.

Input parameters:

  1. Or → Plane origin point.
  2. Ey → Location of eye.
  3. Tr → Target point to be visible a the plane origin.

Output parameters:

  1. Pl → Mirror plane showing the target when looked at from the eye location.
  2. Di → Visual distance from eye to target as seen in the reflecting plane.
