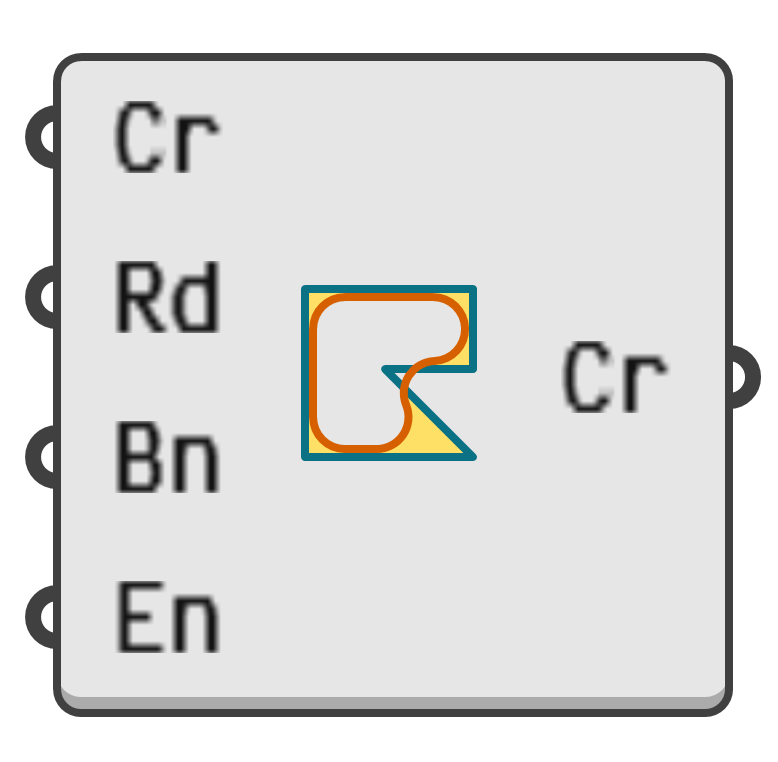

Fillet All
00000000-e863-4fc1-9591-72cdb7c25b57
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.
Fillet an entire curve using a single radius.
- Cr → Curve to fillet.
- Rd → Fillet radius.
- Bn → Fillet bends whose curvature exceeds the filleting radius.
True→ BendsFalse→ Kinks
- En → Fillet the open ends of the curve if their curvature exceeds the filleting radius.
True→ EndsFalse→ Interior
- Cr → Filleted curve.
