SubD From Mesh
00000000-dc3f-4121-a178-9b8b54dc0b20

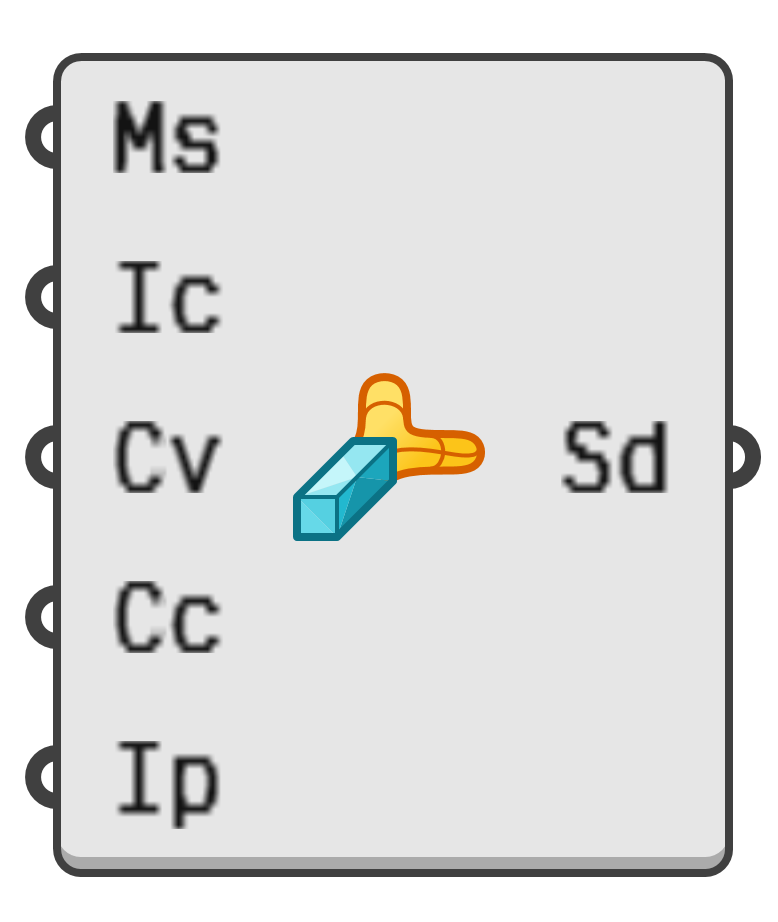

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Convert a mesh into a SubD surface.

Input parameters:

  1. Ms → Mesh to convert.
  2. Ic → Interior crease state. When true, unwelded edges in the mesh become creases in the subd.
  3. Cv → Optional convex corner angle threshold.
  4. Cc → Optional concave corner angle threshold.
  5. Ip → If true, the SubD surface passes through the mesh vertices.

Output parameters:

  1. Sd → Subdivision surface based on mesh.
