Ellipse From Foci
00000000-d6d4-4748-b646-fd2073367f5f

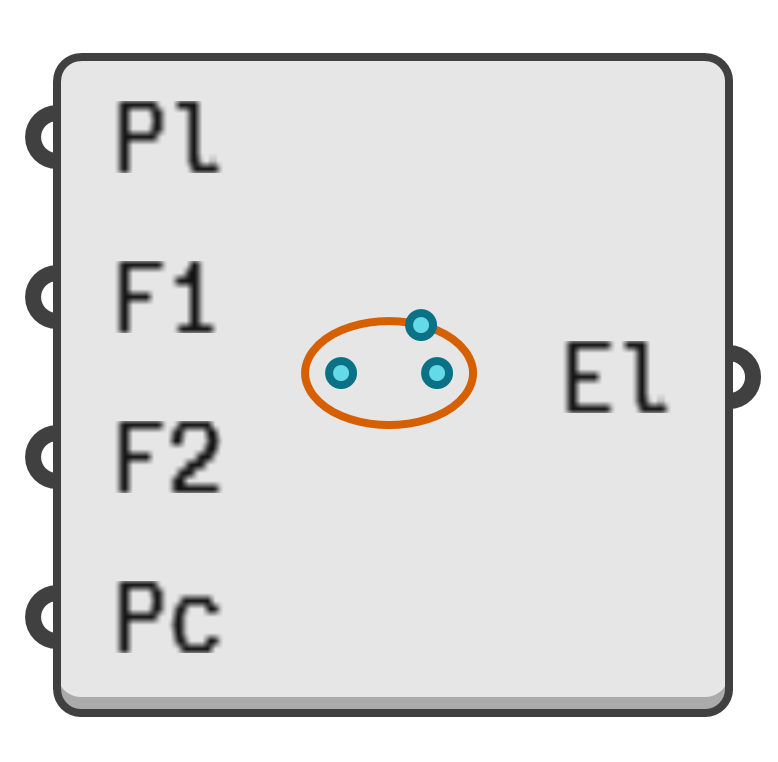

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create an ellipse out of focal points and a coincident point.

Input parameters:

  1. Pl → Optional plane for ellipse. If omitted, the three points define the plane.
  2. F1 → First focal point of ellipse.
  3. F2 → Second focal point of ellipse.
  4. Pc → Point coincident with ellipse.

Output parameters:

  1. El → Ellipse from foci and coincidence.
