Plane Polar Coordinates
00000000-cd71-4eab-87fd-21f831ab7e07

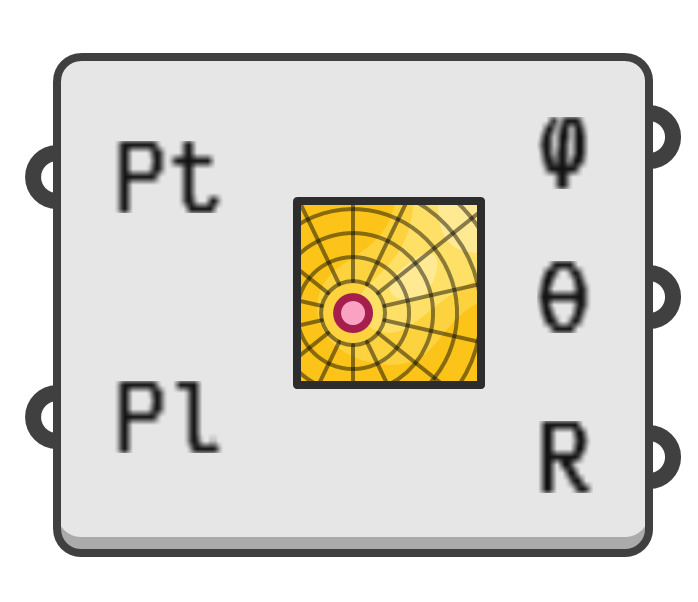

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute the polar plane coordinates of a point in world space.

Input parameters:

  1. Pt → Point in world XYZ space.
  2. Pl → Plane describing the local polar coordinate system.

Output parameters:

  1. φ → Angle of point in the XY plane.
  2. θ → Angle of point in plane Z direction.
  3. R → Distance from plane origin to point.
