Shear From Angles
00000000-c3e6-43b0-a4df-9a18f12e2b5b
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

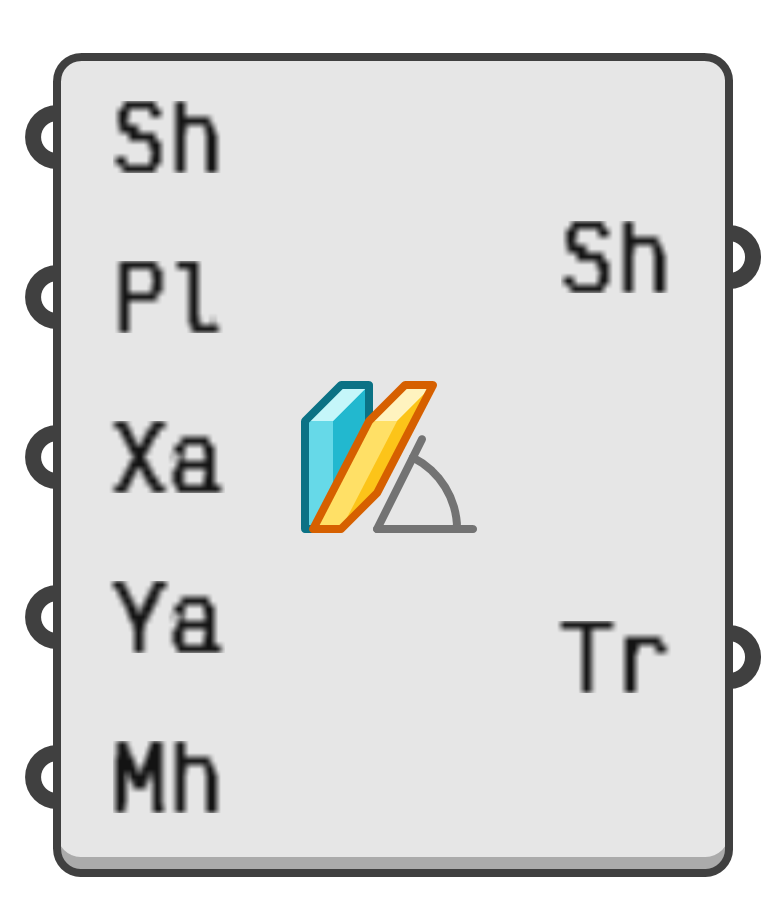

Create a shearing transformation based on X and Y angles. If an input shape is provided, it will be sheared accordingly.
- Sh → Optional shape to shear.
- Pl → Shearing base plane. Geometry within this plane does not get transformed.
- Xa → Shearing angle around the plane X-axis.
- Ya → Shearing angle around the plane Y-axis.
- Mh → If true, the shearing magnitude is adjusted to maintain elevations.
- Sh → Sheared shape.
- Tr → Shearing transformation.
