Orient
00000000-c2e4-4a70-8ba1-613b51b1417f

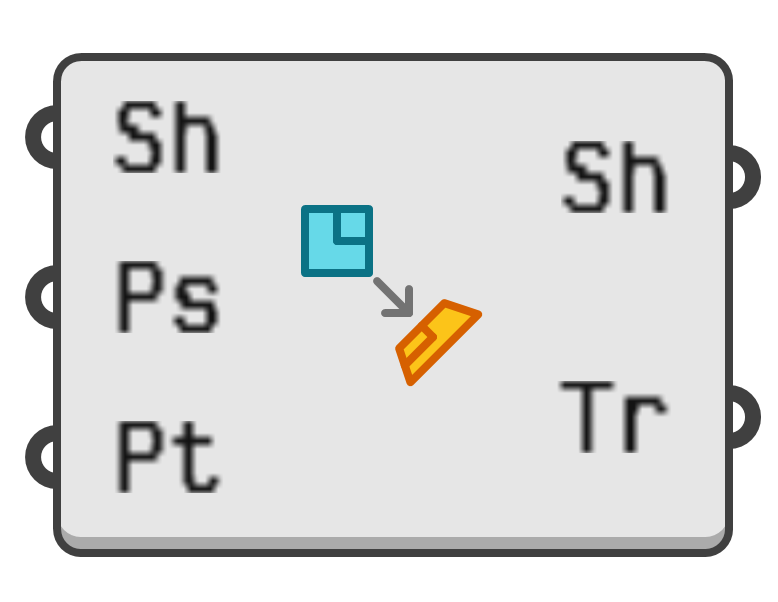

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create an orientation transformation from one plane to another. An orientation consists of translational and rotational aspects. If an input shape is provided, it will be transformed accordingly.

Input parameters:

  1. Sh → Optional shape to orient.
  2. Ps → Initial plane for orient transformation.
  3. Pt → Final plane for orient transformation.

Output parameters:

  1. Sh → Shape with applied orientation transformation.
  2. Tr → Orientation transformation.
