ComponentVector
Cylindrical Point
00000000-bdeb-494d-97cf-1b6503c18908

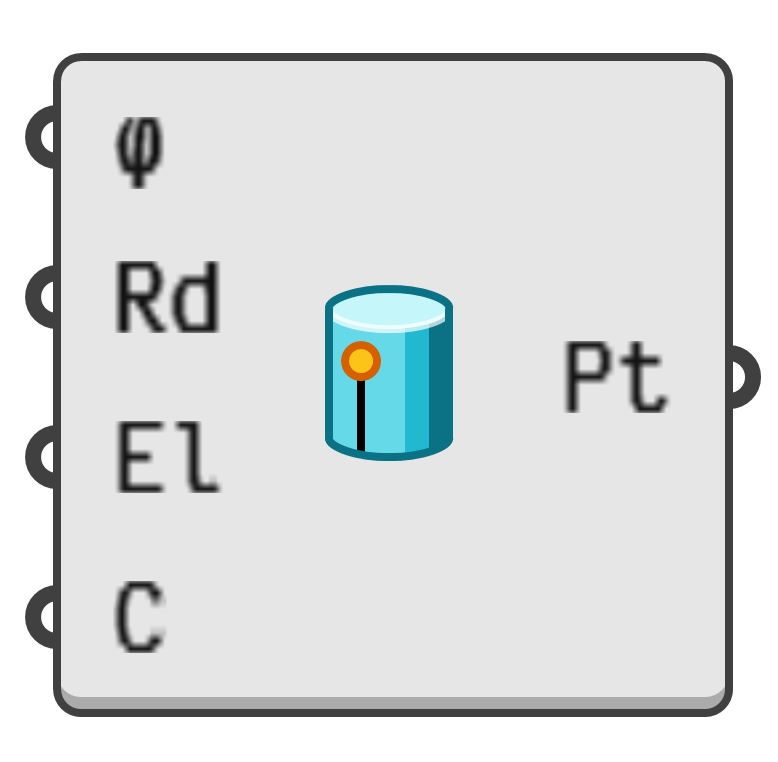

object preview

Create a point using cylindrical coordinates. The first three inputs represent the coordinate values, i.e. an angle, a radius, and an elevation, while the fourth input defines the space in which these coordinates live.

The angle coordinate represents an anti-clockwise rotation within the coordinate space plane.

1
2
2

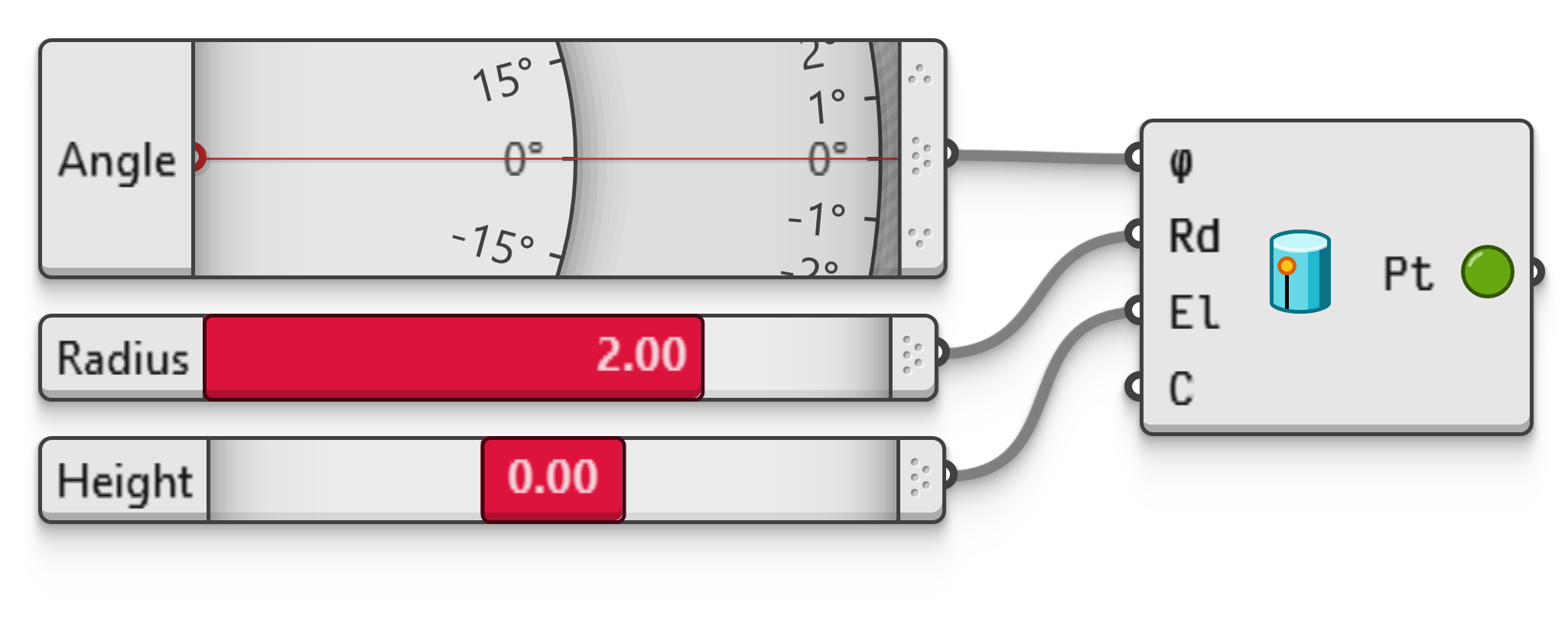

Example file PointCylindrical.ghz.Interactive in Grasshopper 2
This file shows how to define a point using cylindrical coordinates.
1
2
3
4
2
4
5
6

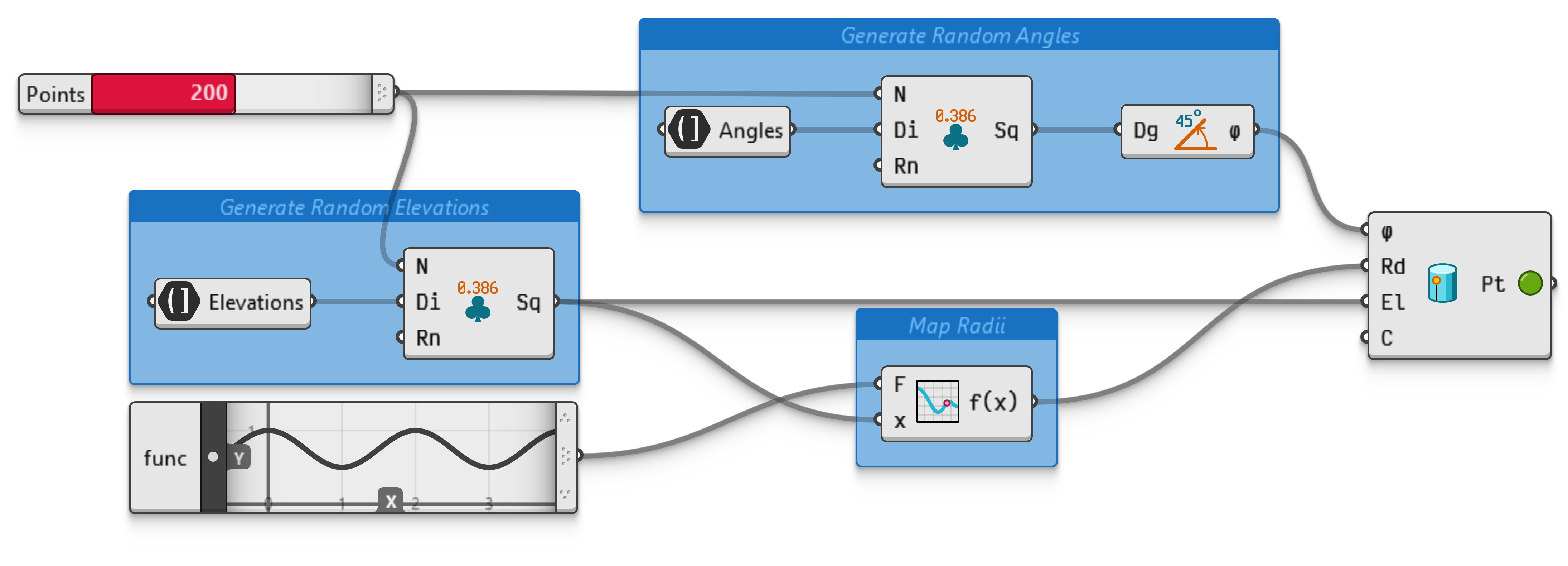

Example file PointsCylindrical.ghz.Interactive in Grasshopper 2
This file shows how to populate a custom surface of revolution with a collection of randomly spaced points, by mapping each random elevation to a radius value.
