Mesh From Constraints
00000000-b8df-4d84-a931-4fab6cf5c73c

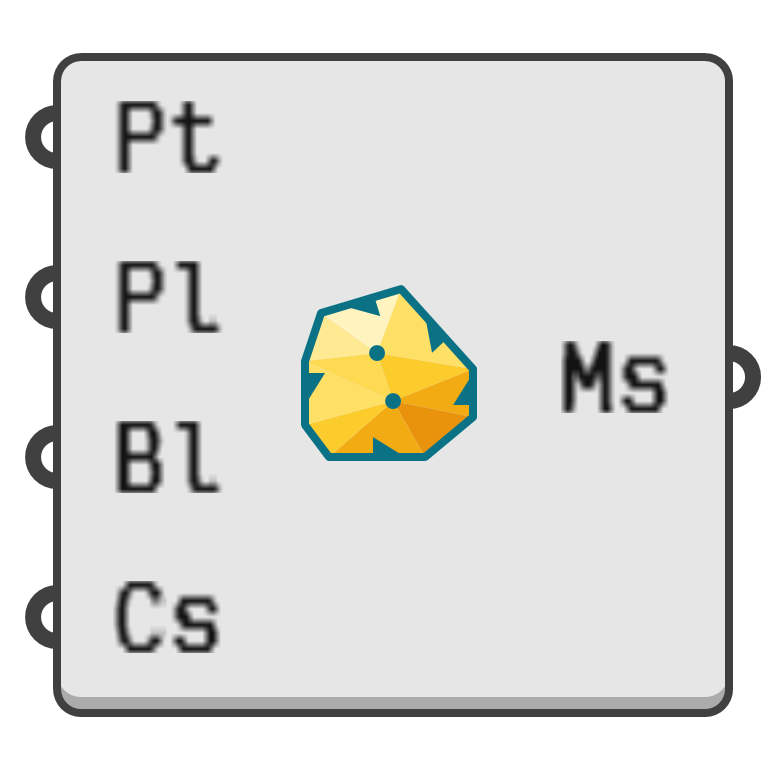

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Construct a constrained tesselation out of points and optional boundaries.

Input parameters:

  1. Pt → Points to tesselate.
  2. Pl → Optional override for tesselation plane. If omitted, the best fit plane is used.
  3. Bl → Insert additional vertices to balance the output mesh.
    •  True → Balance
    • False → Strict
  4. Cs → Optional tesselation constraints such as boundaries, holes and hard edges. These must be created using dedicated components.

Output parameters:

  1. Ms → Tesselated mesh.
