Parallel View
00000000-b882-4670-91f4-9e7ed9ce348d

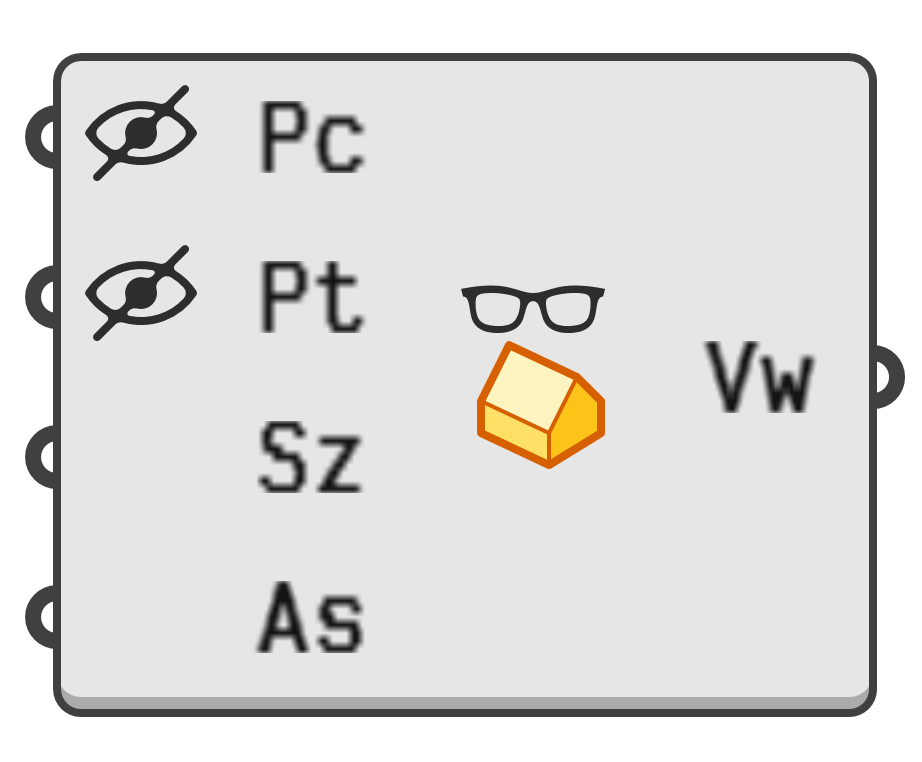

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a parallel view projection from basic properties.

Input parameters:

  1. Pc → Location of view point.
  2. Pt → Location of target point.
  3. Sz → Width of the parallel frustum box in model units.
  4. As → Frustum width to height aspect ratio.
    •                   1 → 1:1 Square
    •  0.7071067811865476 → A# Portrait
    •  1.4142135623730951 → A# Landscape
    • 0.46153846153846156 → 6:13 Smartphone (2020)
    •              0.5625 → 9:16 Smartphone (2015)
    •                 0.6 → 3:5 Smartphone (2010)
    •  0.6666666666666666 → 2:3 Smartphone (2000)
    •                1.25 → 5:4 Television
    •  1.3333333333333333 → 4:3 Fullscreen
    •               1.375 → 11:8 Academy
    •                1.43 → 143:100 IMAX
    •                 1.5 → 3:2 35mm Film
    •  1.6666666666666667 → 5:3 EU wide
    •  1.7777777777777777 → 16:9 HD Video
    •                1.85 → 37:20 US wide
    •                 1.9 → 19:10 Digital IMAX
    •                 2.2 → 11:5 Panavision

Output parameters:

  1. Vw → Parallel view with basic properties.
