Mesh Facet Boundaries
00000000-b47c-403d-9a74-4f636db207f4

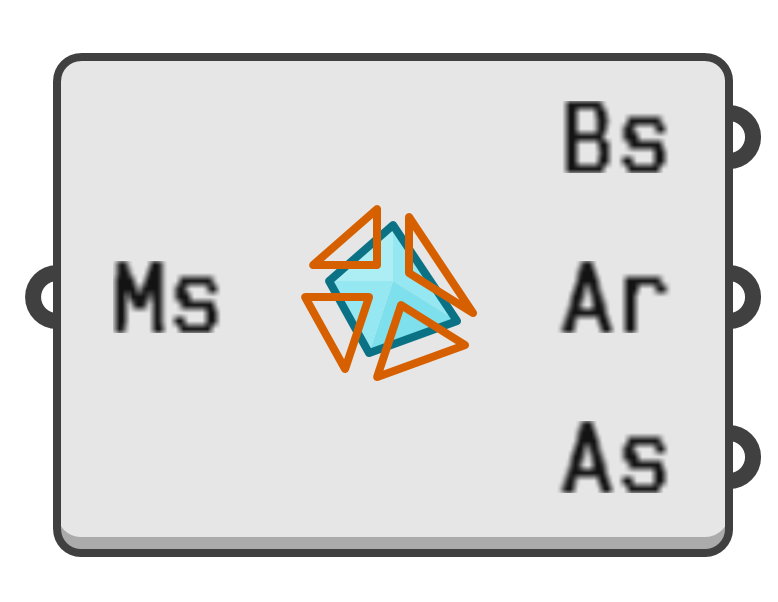

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract the facet boundaries, areas and aspect ratios of a mesh.

Input parameters:

  1. Ms → Mesh to extract elements from.

Output parameters:

  1. Bs → Facet boundary curves.
  2. Ar → Facet areas.
  3. As → Facet aspects.
