ComponentCurve
Line Implicit
00000000-ad13-4d74-9e50-97008312bb9c

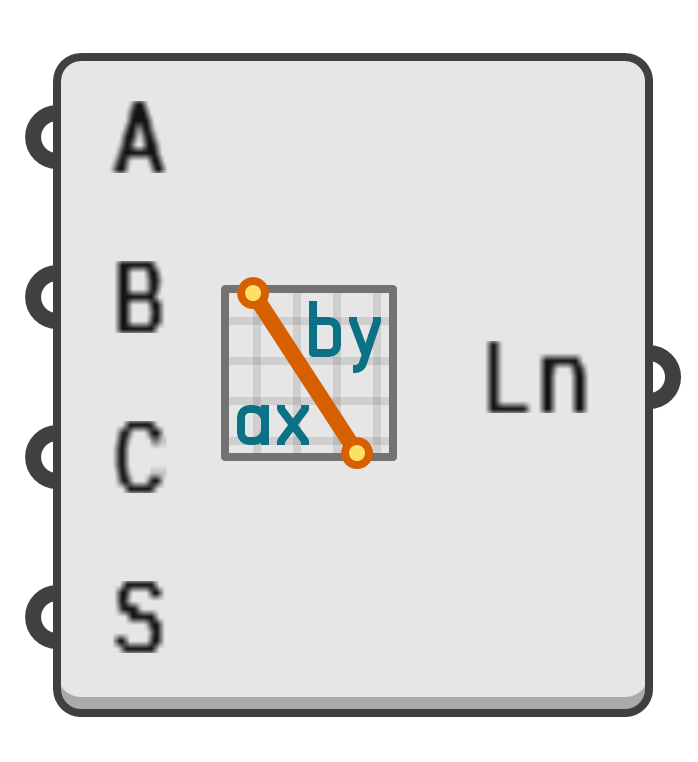

object preview

Create a finite line segment coincident with the hypothetical infinite line described by an equation in the form ax+by+c=0. The ratio of a and b controls the angle of the line, while the c factor affects the distance between the line and the origin.

1
1
1
2
3
4

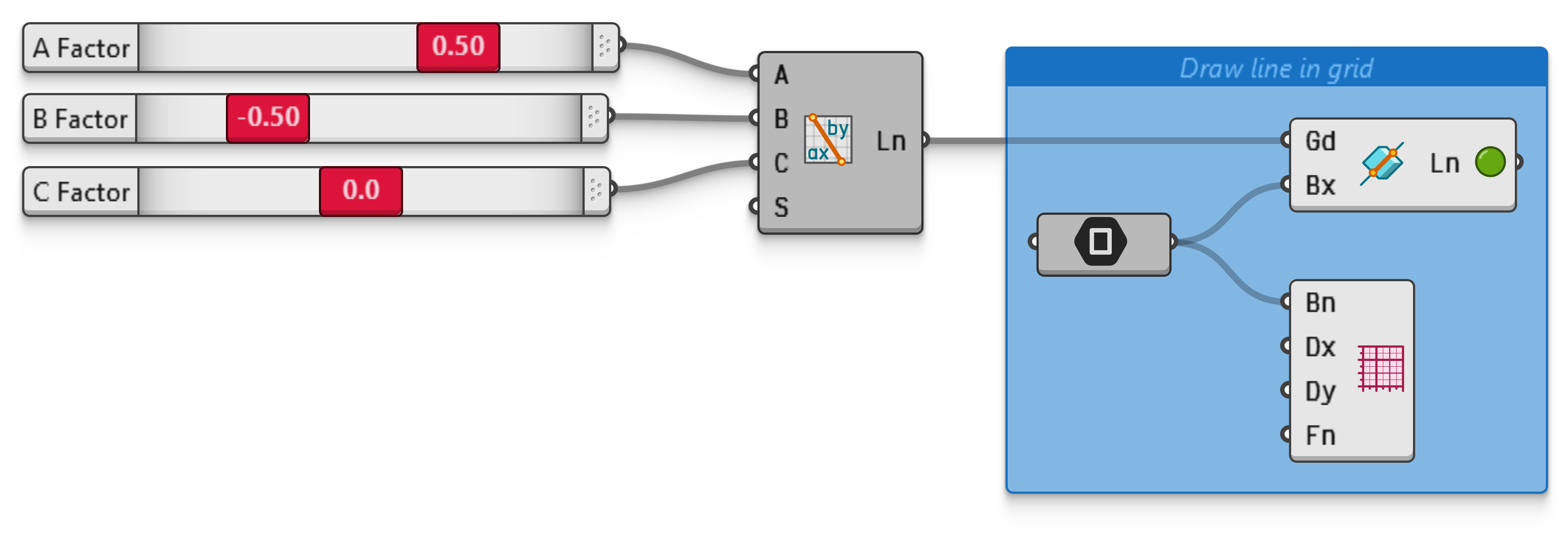

Example file LineImplicit.ghz.Interactive in Grasshopper 2
Construct a line segment coincident with the equation ax+by+c=0.
