Curve Side
00000000-a578-44d2-a752-a514266f8155

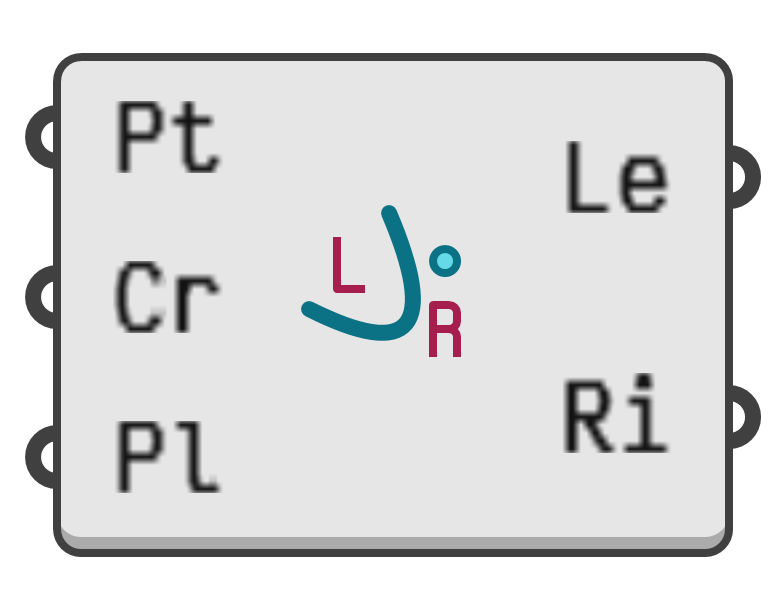

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Test whether a point is to the left or the right of a curve.

Input parameters:

  1. Pt → Point for curve side test.
  2. Cr → Guide curve.
  3. Pl → Optional override for testing plane. If omitted, the curve plane is used.

Output parameters:

  1. Le → True if the shape is to the left of the curve.
  2. Ri → True if the shape is to the right of the curve.
