Perspective View
00000000-9e15-46ff-80a9-246aadbb20bb

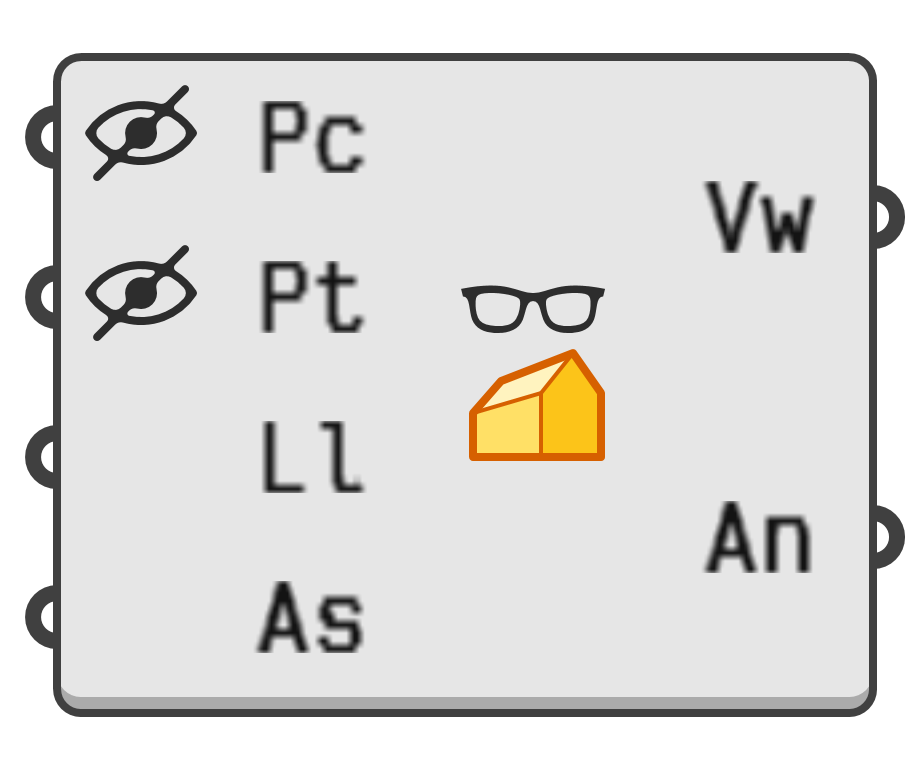

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a perspective view projection from basic properties.

Input parameters:

  1. Pc → Location of view point.
  2. Pt → Location of target point.
  3. Ll → Lens length (in millimetres) for a canonical 36mm sensor.
    •  14 → 14mm Ultra-wide
    •  24 → 24mm Wide
    •  35 → 35mm Moderate Wide
    •  50 → 50mm Normal
    •  85 → 85mm Portrait
    • 100 → 100mm Macro
    • 135 → 135mm Telephoto
    • 200 → 200mm Long Telephoto
    • 500 → 500mm Near Isometric
  4. As → Frustum width to height aspect ratio.
    •                   1 → 1:1 Square
    •  0.7071067811865476 → A# Portrait
    •  1.4142135623730951 → A# Landscape
    • 0.46153846153846156 → 6:13 Smartphone (2020)
    •              0.5625 → 9:16 Smartphone (2015)
    •                 0.6 → 3:5 Smartphone (2010)
    •  0.6666666666666666 → 2:3 Smartphone (2000)
    •                1.25 → 5:4 Television
    •  1.3333333333333333 → 4:3 Fullscreen
    •               1.375 → 11:8 Academy
    •                1.43 → 143:100 IMAX
    •                 1.5 → 3:2 35mm Film
    •  1.6666666666666667 → 5:3 EU wide
    •  1.7777777777777777 → 16:9 HD Video
    •                1.85 → 37:20 US wide
    •                 1.9 → 19:10 Digital IMAX
    •                 2.2 → 11:5 Panavision

Output parameters:

  1. Vw → Perspective view with basic properties.
  2. An → Resulting minimum view angle.
