ComponentAuto-generatedMesh
Vertex Categories
00000000-9d32-4738-b840-3c3db1c0656e

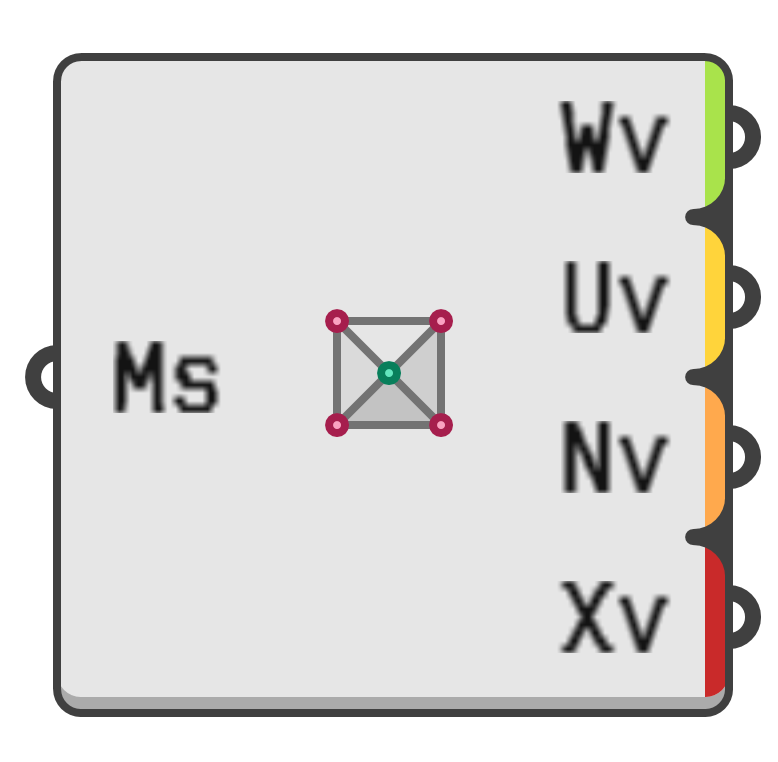

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Group the vertices of a mesh into various mutually exclusive categories.

Input parameters:

  1. Ms → Mesh whose vertices to categorise.

Output parameters:

  1. Wv → Vertices with only welded edges.
  2. Wi → Indices of vertices with only welded edges.
  3. Uv → Vertices with at least one unwelded edge, and without any naked or non-manifold edges.
  4. Ui → Indices of vertices with at least one unwelded edge, and without any naked or non-manifold edges.
  5. Nv → Vertices with at least one naked edge, and without any non-manifold edges.
  6. Ni → Indices of vertices with at least one naked edge, and without any non-manifold edges.
  7. Xv → Vertices with at least one non-manifold edge.
  8. Xi → Indices of vertices with at least one non-manifold edge.
