Dissect Box
00000000-9ba4-47d3-b456-17c6881d0795

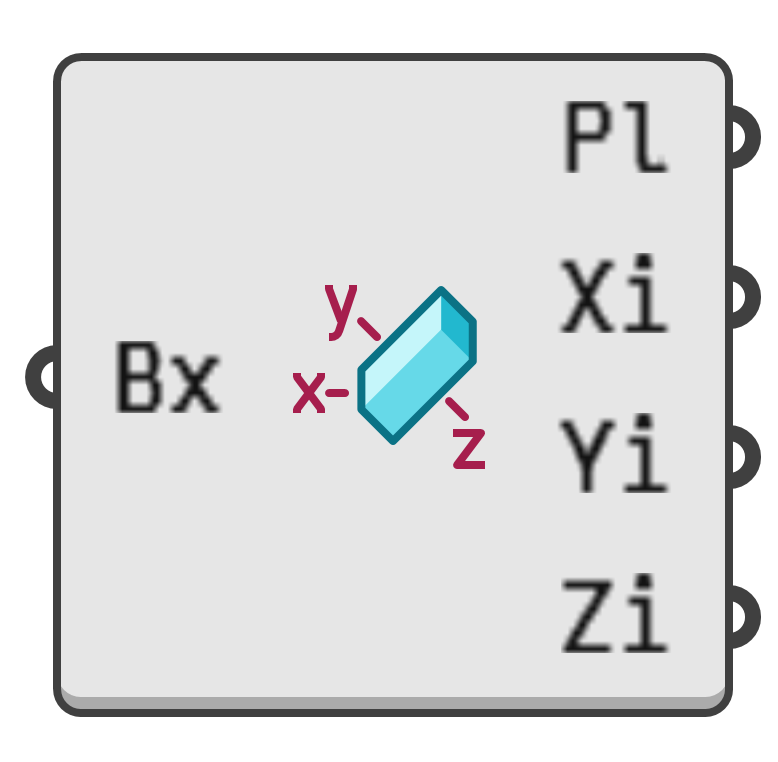

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Dissect a box into its base plane and axis intervals.

Input parameters:

  1. Bx → Box to dissect.

Output parameters:

  1. Pl → Box plane.
  2. Xi → Interval along the base plane x-axis.
  3. Yi → Interval along the base plane y-axis.
  4. Zi → Interval along the base plane z-axis.
