Field Iso On Shape
00000000-96c5-4276-9588-498791db0b2a

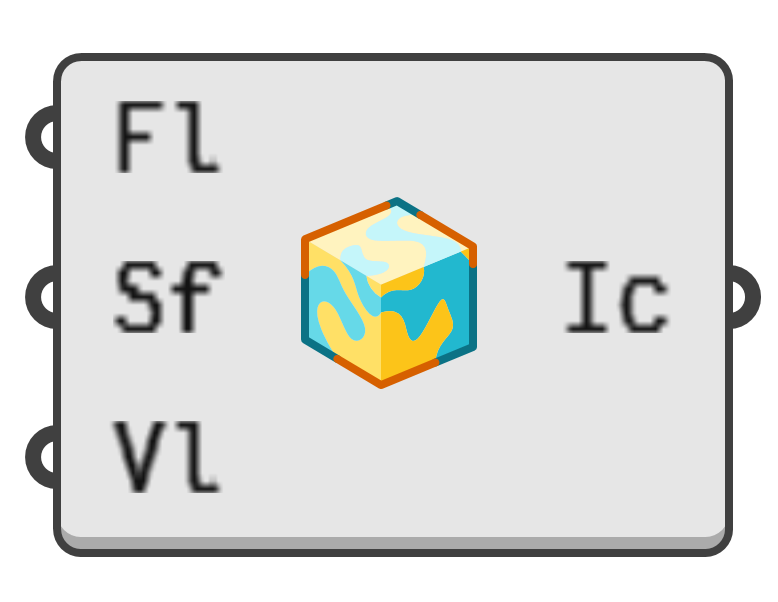

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Display field magnitude isocurves on a surface or mesh.

Input parameters:

  1. Fl → Field to contour.
  2. Sf → Surface or mesh to contour on.
  3. Vl → Value thresholds for field isocurves.

Output parameters:

  1. Ic → Isocurves on the Mesh.
