Volumetric Cooling
00000000-8928-459b-8e36-4435b8a4be37

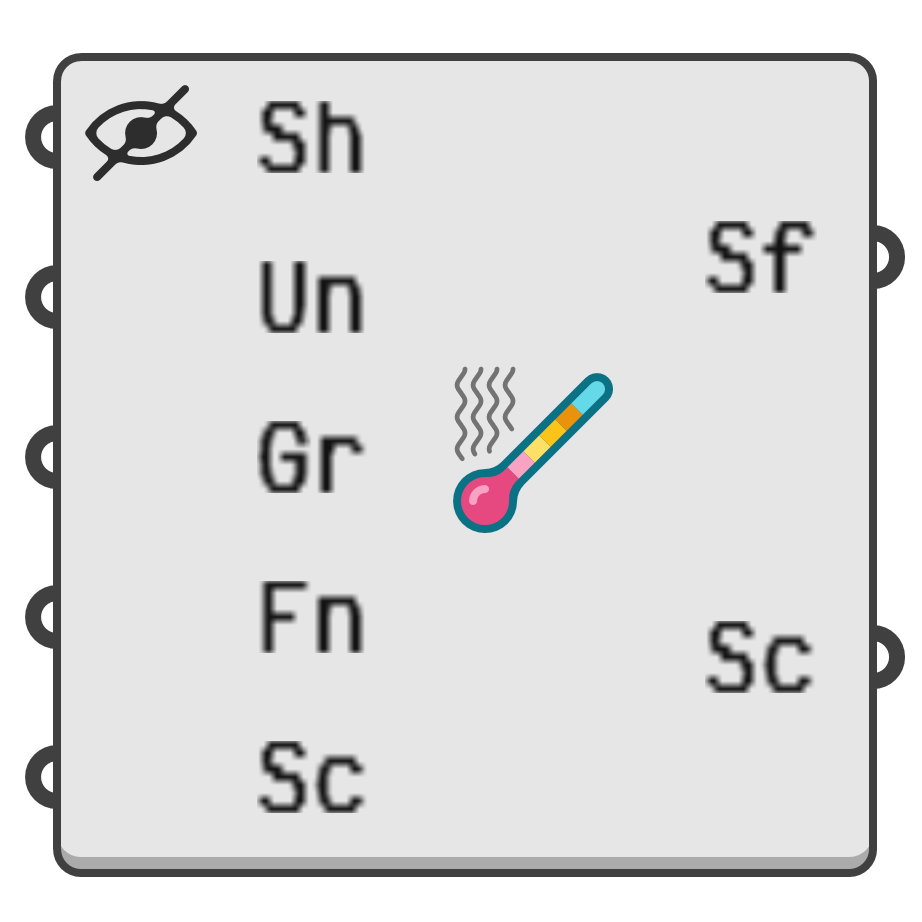

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Simulate the volumetric cooling of a surface or a mesh.

Input parameters:

  1. Sh → Surface or mesh to analyse.
  2. Un → Optional voxel accuracy. Smaller values drastically increase computation time.
  3. Gr → Normalised temperature gradient.
  4. Fn → Optional function for post-processing subsurface temperature gradient values.
  5. Sc → Optional planar sections through the shape.

Output parameters:

  1. Sf → Cooling gradient on shape surface.
  2. Sc → Sections with normalised temperature distributions.
