Elevation Display
00000000-87ea-4506-9bf4-4c667de38ede

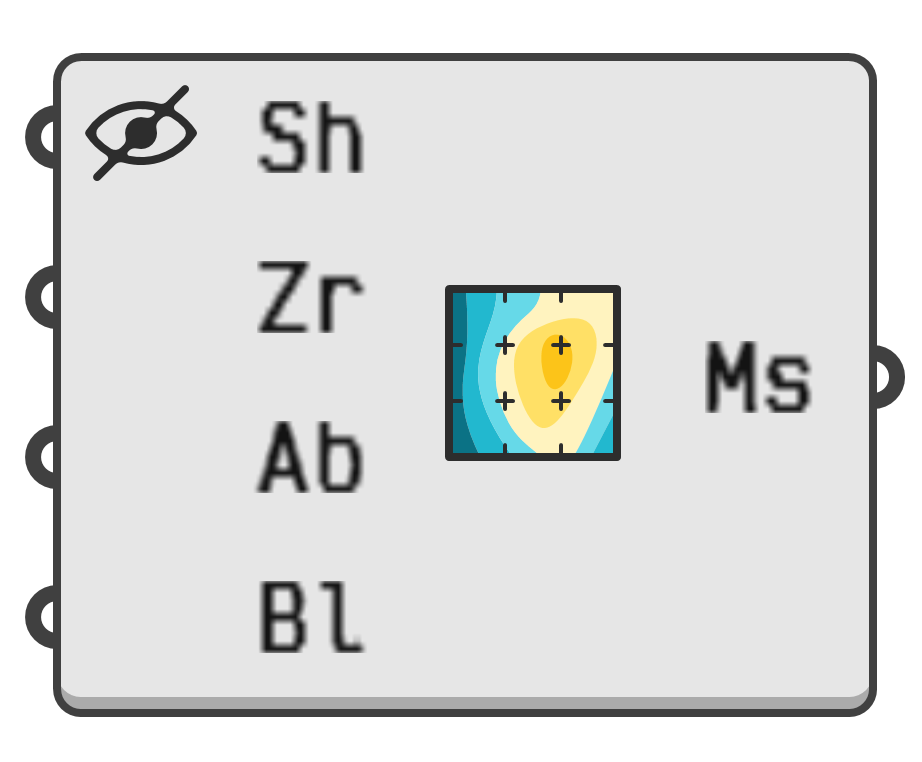

object preview

Colour the vertices of a mesh based on their elevation. The elevations are measured as the signed distance from each vertex to the zero-plane.

An optional separate gradient can be added to override the colours of the below zero portions of the mesh.

1
2
3
3
4
5
6

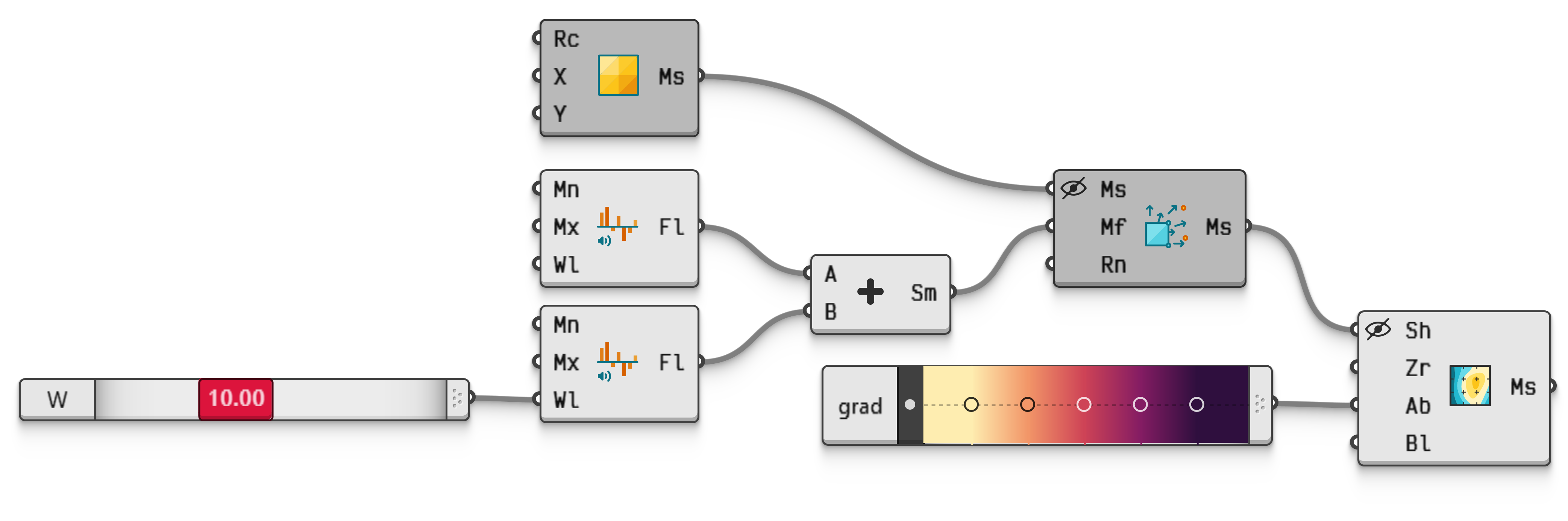

Example file ElevationDisplay.ghz.Interactive in Grasshopper 2
Apply a scaled Matter gradient to a mesh with two frequencies of noise.
