Spherical Point
00000000-86ed-4f7a-ae5f-ba1f550a3e52

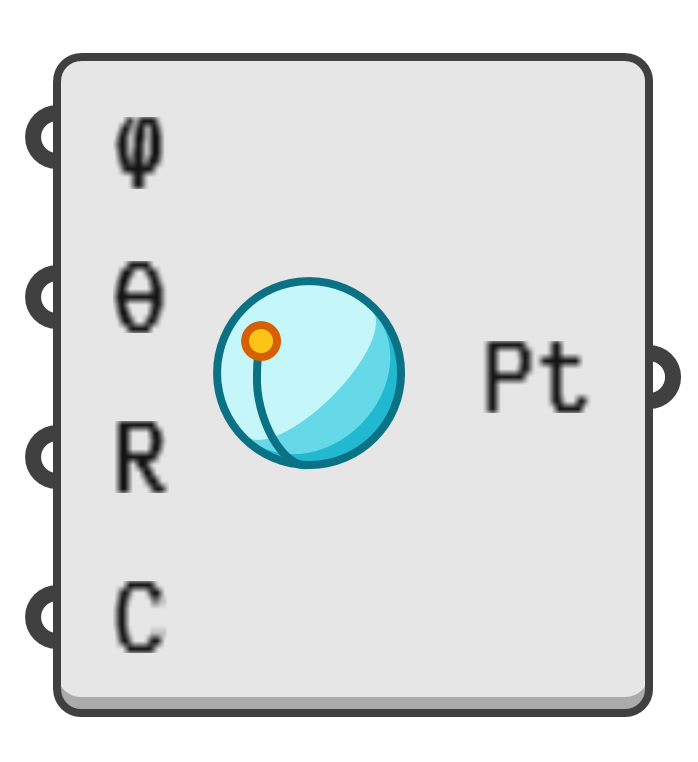

object preview

Create a point using spherical coordinates. The first three inputs represent the coordinate values, i.e. an xy angle, a z angle, and a radius, while the fourth input defines the space in which these coordinates live.

The xy angle coordinate represents an anti-clockwise rotation within the coordinate space plane. The z angle goes from −90° on the sphere south pole, to +90° on the north pole.

1
2
1

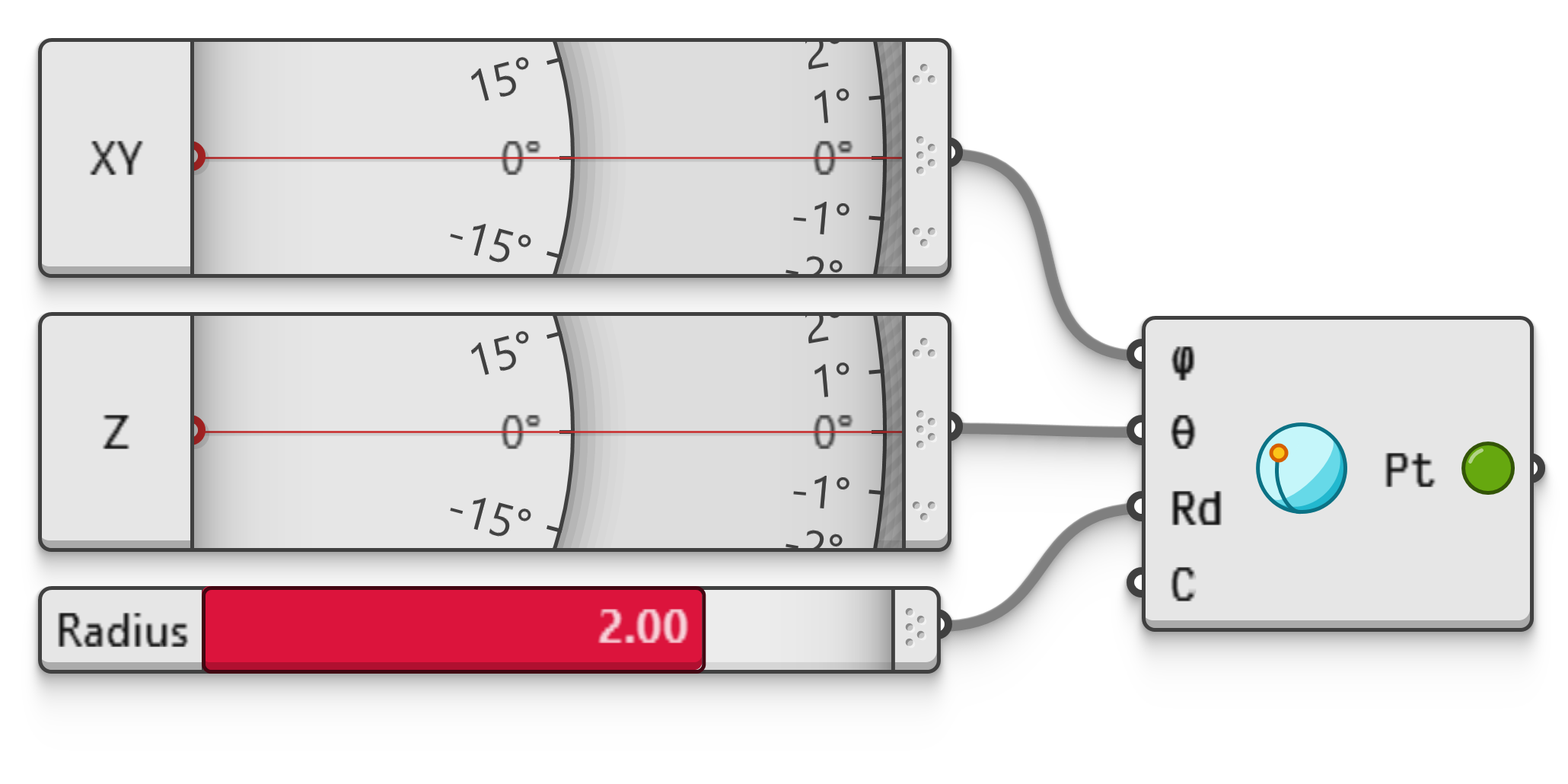

Example file PointSpherical.ghz.Interactive in Grasshopper 2
This file shows how to define a point using spherical coordinates.
