Box Faces
00000000-85c7-4a82-a926-0e1f817987fd

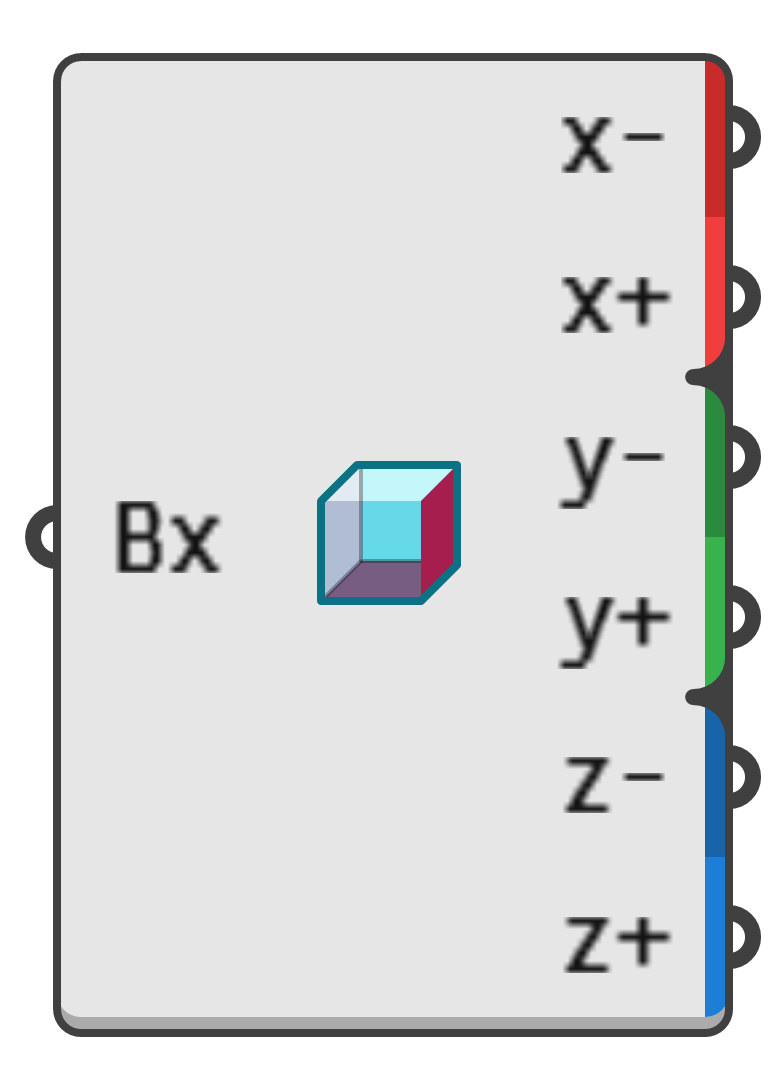

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract the six faces of a box as rectangular boundary curves.

Input parameters:

  1. Bx → Box for face extraction.

Output parameters:

  1. x- → Left face of the box.
  2. x+ → Right face of the box.
  3. y- → Front face of the box.
  4. y+ → Back face of the box.
  5. z- → Bottom face of the box.
  6. z+ → Top face of the box.
